PLM Synchro is a standard product for the creation of own part catalogs from CAD, PLM and ERP data and as such integrated in PARTdataCenter.
A Wizard guides through the basic steps and significantly eases the creation of your own parts catalog (see ???).

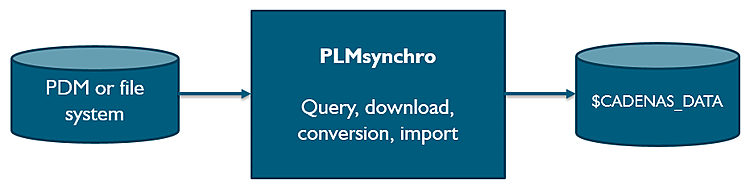

A process pipeline is automatically created, where all single processes can be adjusted in detail via nodes and edges - if needed.
Through the devision in different process steps specific customization is possible.
Furthermore the integration of plugins allows flexible customization.
Data import happens one time initially. Then during a nightly (for example) data synchronization data changes at article master, class structure, etc. are transferred by automated processes.
With the help of plugins and extensive configuration options, the information can be enriched, filtered and modified.
Meta data and topological data (with license CNS2009*PSADDONS*ADVANCEDTOPO in best quality)
With access to the PLM system all information available there (material, descriptions, etc.), depending on interface, possibly master data in addition

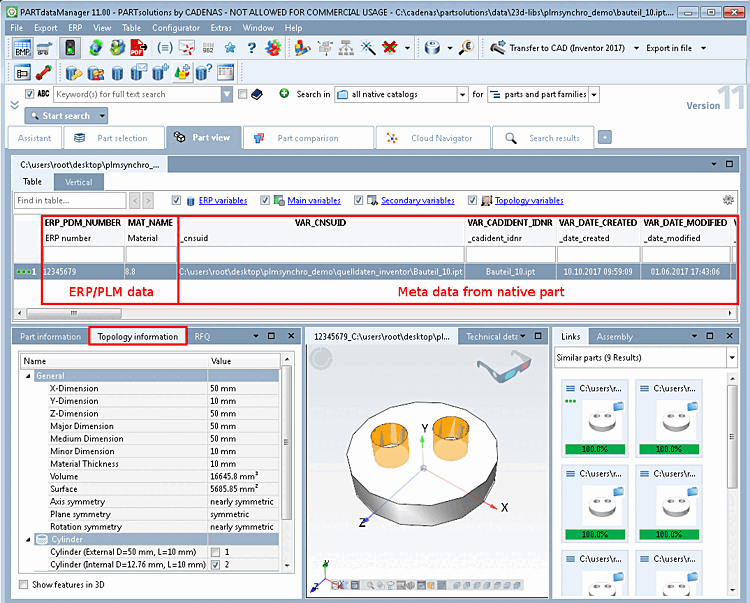

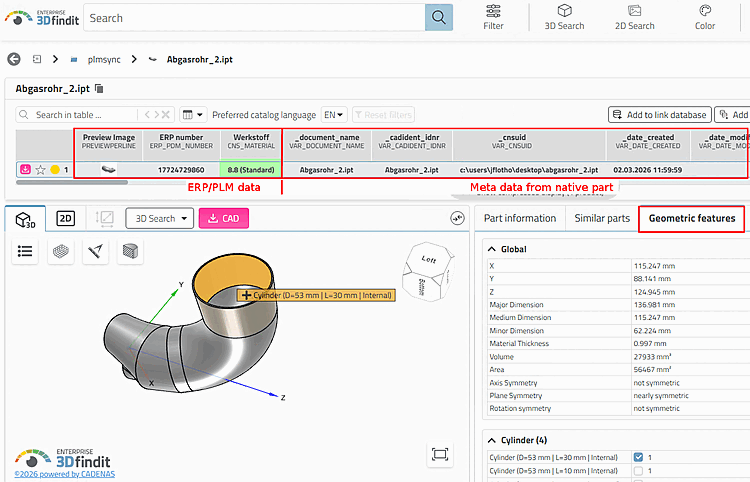

3D preview images are automatically generated and displayed in the characteristic attribute table.
A flat structure or a hierarchical structure of the source files can be displayed (according to class information from [PLM/ERP]).
Data can be available in different languages and be displayed in PARTsolutions depending on the set language.
The following licenses are required for the operation of PLMsynchro:
