In PARTdataManager, open a native part.

With Table --> Edit call up the Create tables window.

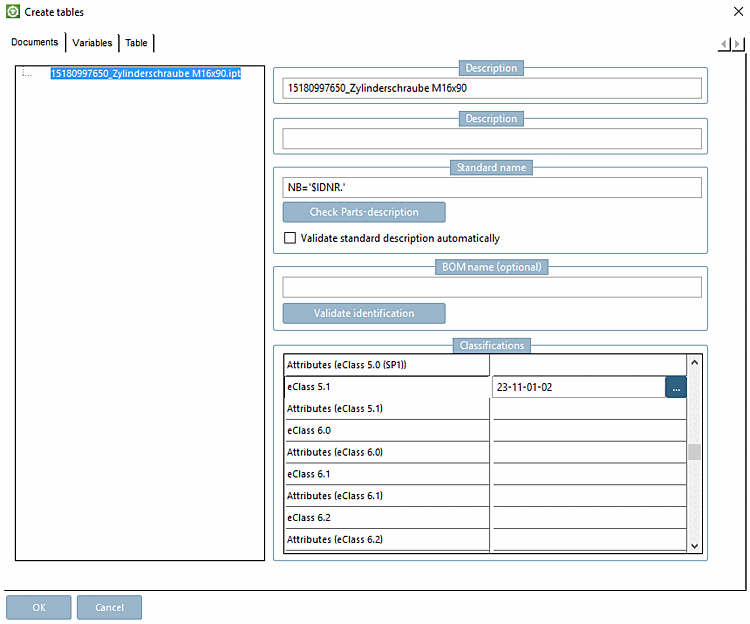

Assign a classification to the native part (for example, under eClass 5.1) [compare above].

Under Attributes (classification) via the browse button ..., open the Class variables window.

Select a class attribute.

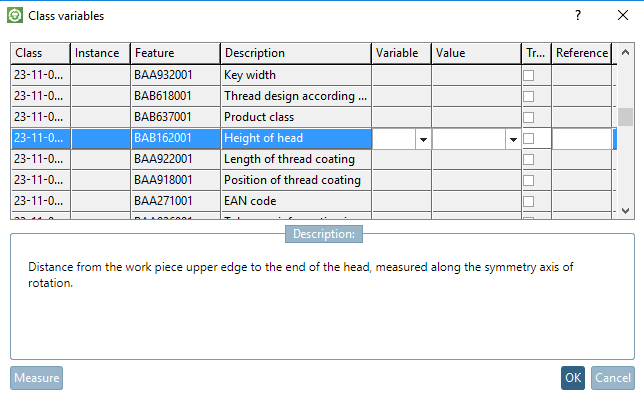

Cursor in "Value" field

Set cursor on Value field.

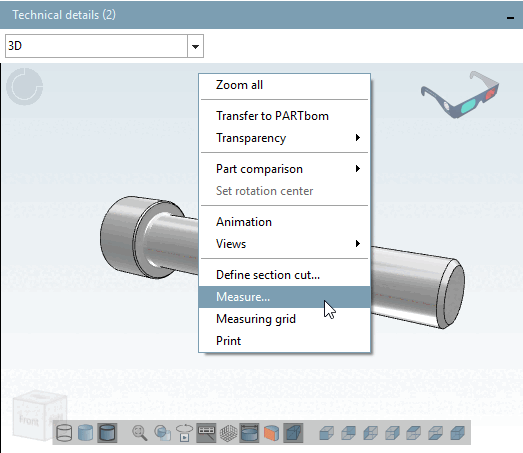

In the 3D view, in context menu, click on Measure....

--> The Measure dialog window is opened.

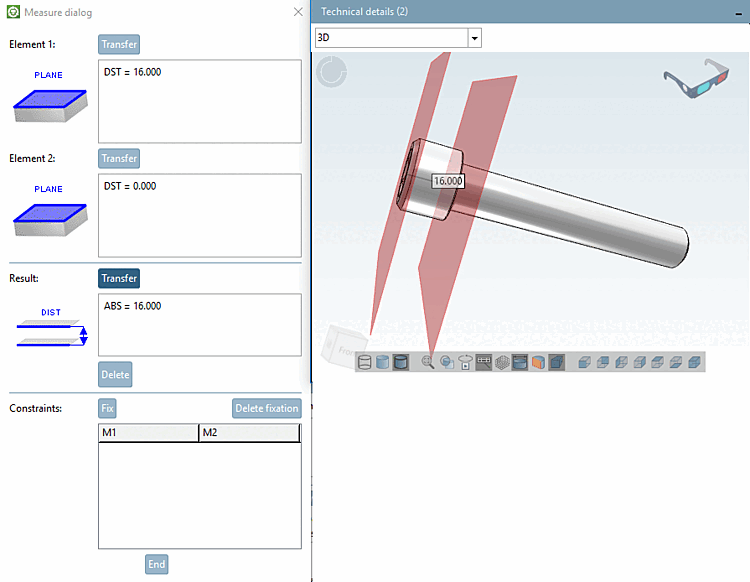

2 parallel planes marked -> ABS = 16.000 transferred

In the 3D window, mark the desired areas, lines, points, etc.

Click on Transfer.

--> The value is assigned to the currently selected class attribute.

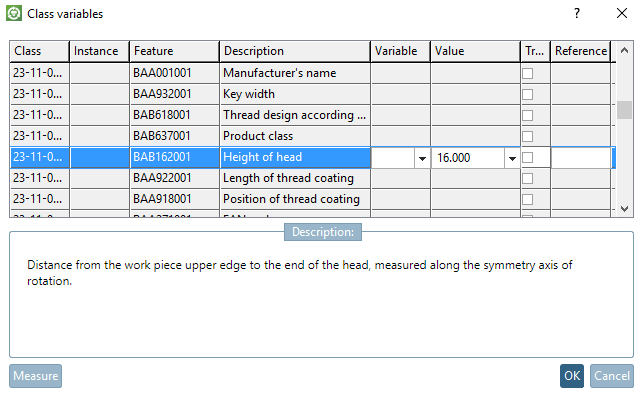

Value assigned from the Measure dialog

Detailed information on the Measure dialog can be found under Section 3.1.7.6.3, “ Measurement of 3D parts ” in PARTsolutions - User manual.

Confirm with OK.

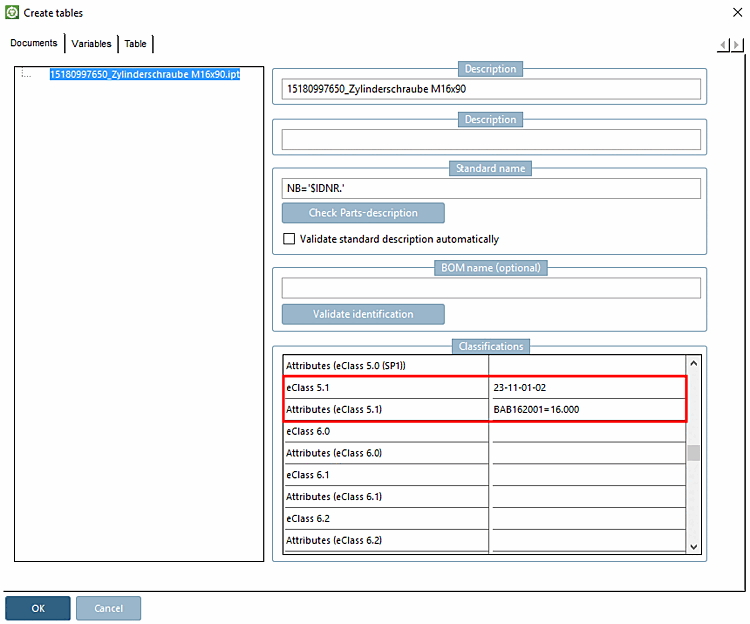

The attribute has been entered in the dialog Create tables.
