1.1.1.2.2.14. Sketcher: Insert Polygon - Scalar Parameters

For the Insert Polygon [Insert polygon] function (currently for testing purposes only) the "Scalar Par. [Scalar parameters] " setting option is now also available (applies to radius and angle values).

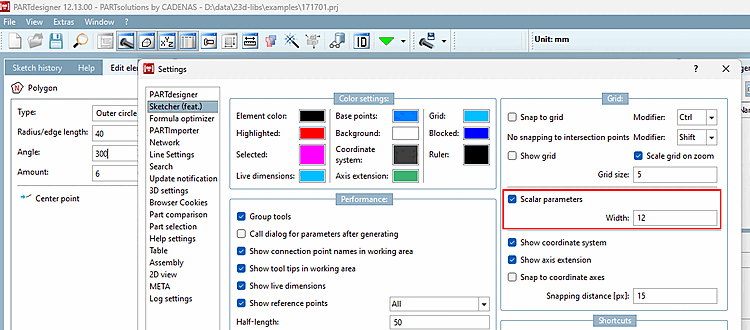

PARTdesigner > "Extras" menu > Settings > Sketcher (hist.) [Sketcher (feat.)] > Scalar Par. [Scalar parameters]

PARTdesigner > "Extras" menu > Settings > Sketcher (hist.) [Sketcher (feat.)] > Scalar Par. [Scalar parameters]

See the feature description at Section 1.2.1.3.1.15, “Sketcher: Insert polygon Revision”.
