1.3.5.4.6.  Hatch-Cut Plane

In the 3D view, a grid is displayed by default in cut mode.

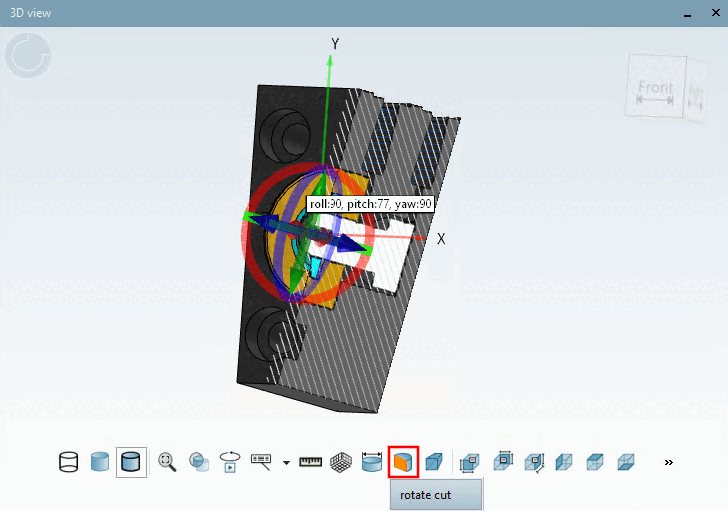

Cross-sectional plane with hatching

Cross-sectional plane with hatching

In the PARTdesigner settings dialog, you can make specific adjustments .

Hatch Style Layer [Hatching cut plane]: Enabled / Disabled

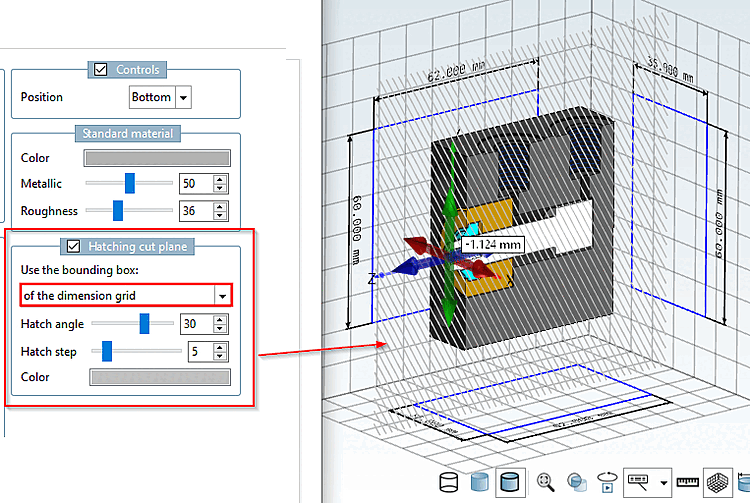

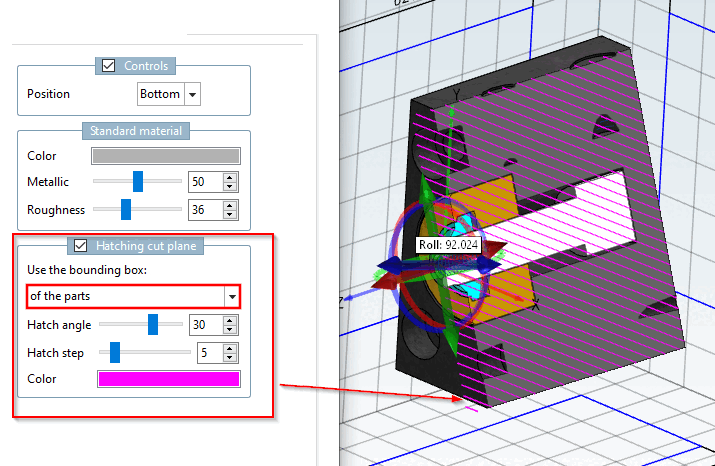

  • Use a border [Use the bounding box] from

    • Dimensioning Grid

    • Part

  • Hatching Angle

  • Hatching Spacing

  • Color
