7.6.2.10.6.2. Several intersecting chamfers/fillets and Blend feature in addition

[Note]Note

A combination (two or more) of Chamfer/Fillet created by Cut extrusion (by sketch) + Chamfer/Fillet created by the Blend feature (context menu command New Chamfer/Fillet...) may lead to errors and has to be avoided (see following figures).

Of course, you can switch between different ways of creating chamfers/fillets within a model depending on the installation situation. The restriction only applies to directly intersecting edges.

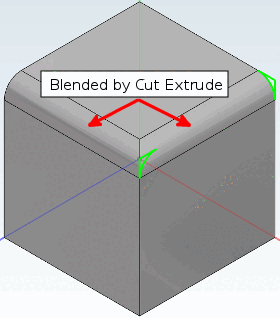

Chamfer/Fillet created by Cut extrude

Chamfer/Fillet created by Cut extrude

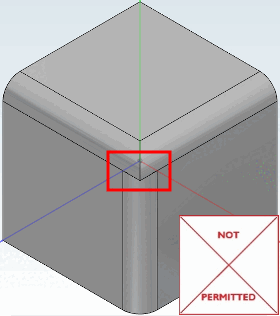

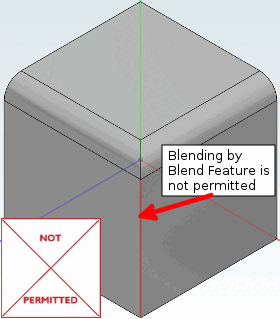

In this situation, using the Blend feature is not permitted for an intersecting edge.

In this situation, using the Blend feature is not permitted for an intersecting edge.

Faulty result would be:

Result – View 1

Result – View 1

Result – View 2

Result – View 2

[Note]Note

The combination of one Chamfer/Fillet created by Cut extrude (by sketch) + one Chamfer/Fillet created by the Blend feature (context menu command New Chamfer/Fillet...), would be Ok, whether useful may remain open.

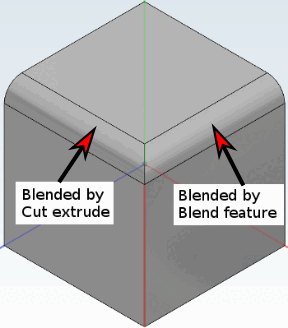

In this example the Blend feature had been applied first, then the Cut extrude.

In this example the Blend feature had been applied first, then the Cut extrude.
