2.8.1. Sketch 1 – “Raw“ cap nut

2.8.1.1. Create Sketch 1
2.8.1.2. Finish Sketch 1
2.8.1.3. Base rotate

Start with the creation of the "raw" cap nut.

  1. In the docking window 3D History, select the initial plane XY.

    -> The selected plane is shown with a grid structure.

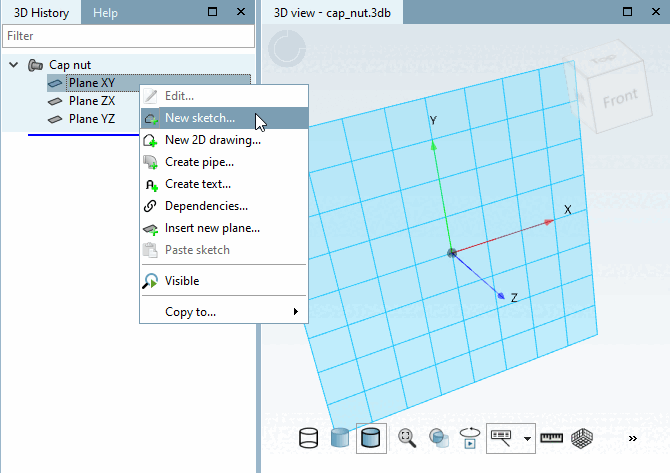

  2. With the secondary mouse key, call the context menu of plane Plane XY.

  3. In the context menu, click on the item New sketch....

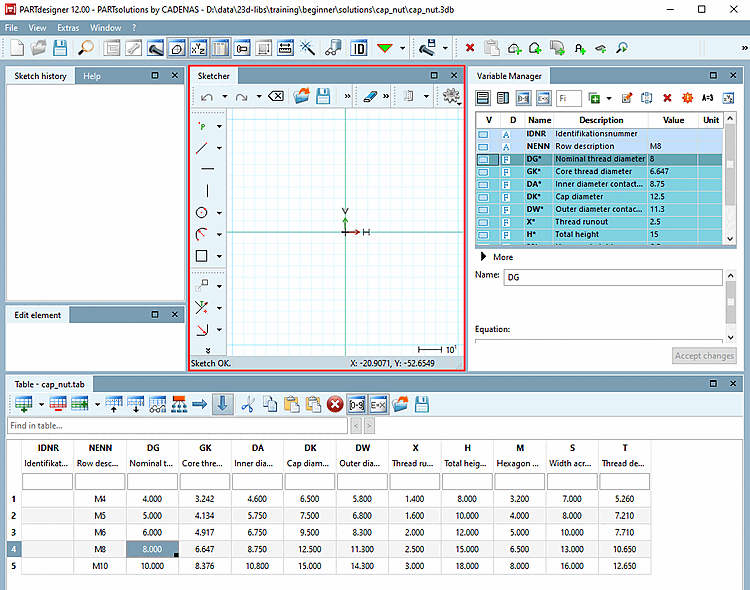

    -> The Sketcher is opened.

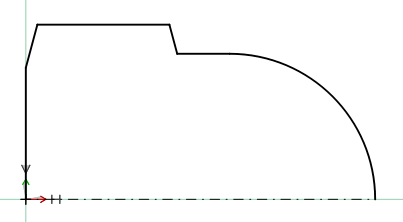

In the next steps, the 2D sketch of the cap nut shall be created as shown below.

Sketch cap nut

Sketch cap nut

[Note]Note

To create the drawing, follow the notes in the footer of PARTdesigner. There is some information according to the current state of the drawing or the next step.
