3.5.4.2.3.5. FCSI attributes shared parameters

For the food market (FCSI) shared parameters, the user must mainly classify the class Revit shared parameter files, which only has two attributes:

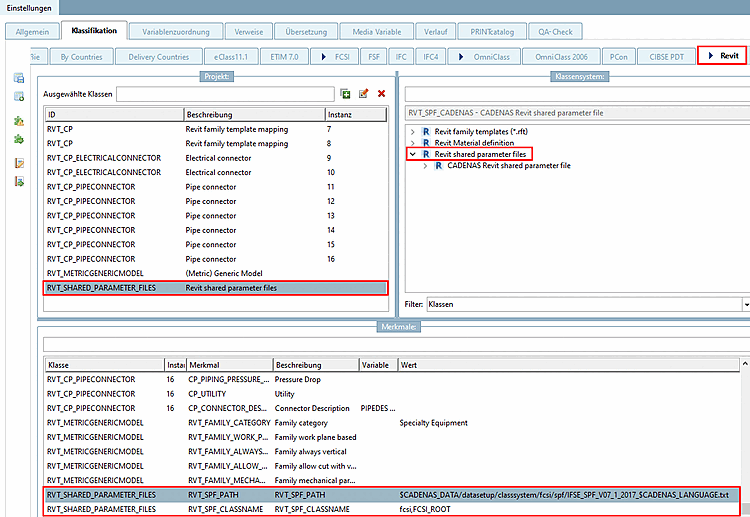

  • RVT_SPF_PATH: Refers to the respective file, where the Shared Parameters of the desired classification are stored (here in this example FCSI).

    Example:

    D:\cadenas\partsolutions\data\datasetup\classsystem\fcsi\spf\
 IFSE_SPF_V07_1_2017_$CADENAS_LANGUAGE..txt

  • RVT_SPF_CLASSNAME: Contains two parameters separated by comma, 1. the classification, 2. the class

The further specific mapping of attributes is done in the FCSI classification.

The shared parameter file is stored under ...\data\datasetup\classsystem\fcsi.

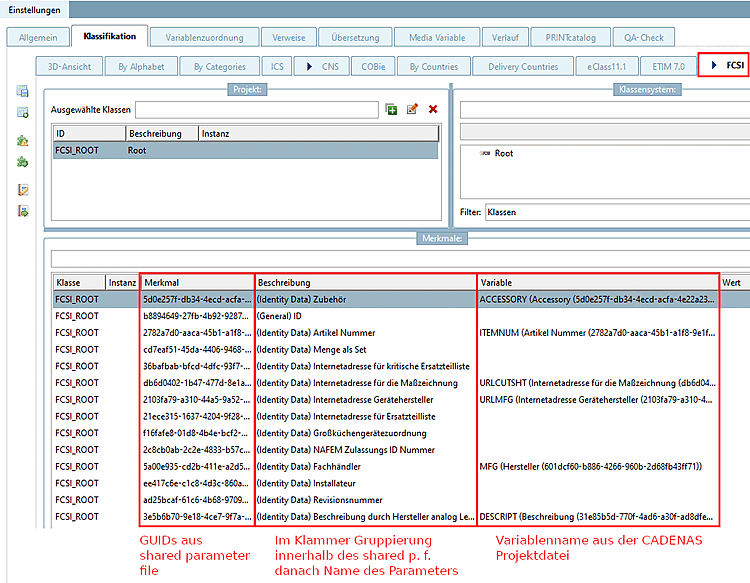

In this example the projects are classified with the FCSI classification. Respective CADENAS variables have been assigned to individual attributes (GUIDs from the Shared Parameter File).
