3.4.1. How to create certificates at customer 3.4.1.1. Request certificate having auto-enrollment active
Prev	Next

If the customer has auto-enrollment active, requesting a certificate is simple:

Call "certlm":
1. Via Windows Start menu -> Manage computer certificates
2. Via PARTadmin -> category Application Server -> AppServer Service -> tabbed page Port configuration -> SSL -> certlm.msc
Manage computer certificates

certlm.msc

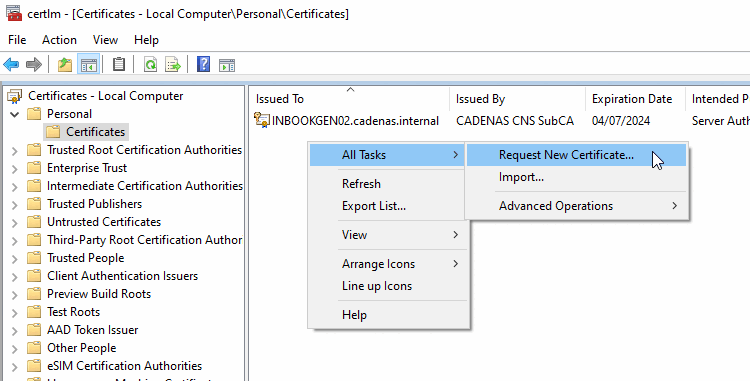

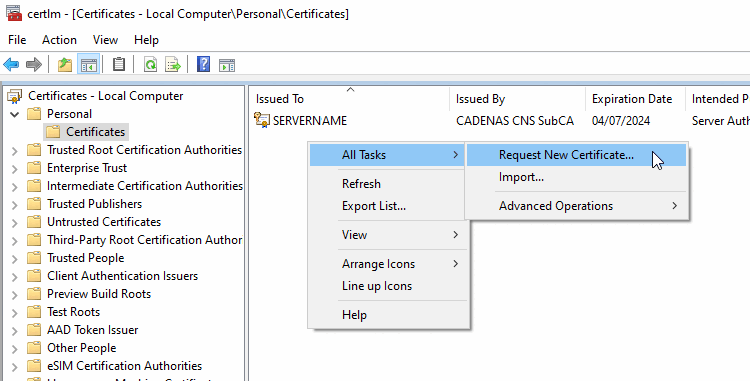

In certlm [Certificates - Local Computer], under Personal -> Certificates -> All Tasks, click on Request New Certificate....

Request New Certificate...

-> The dialog Certificate Enrollment -> Before You Begin is opened.
Click Next.

Before You Begin

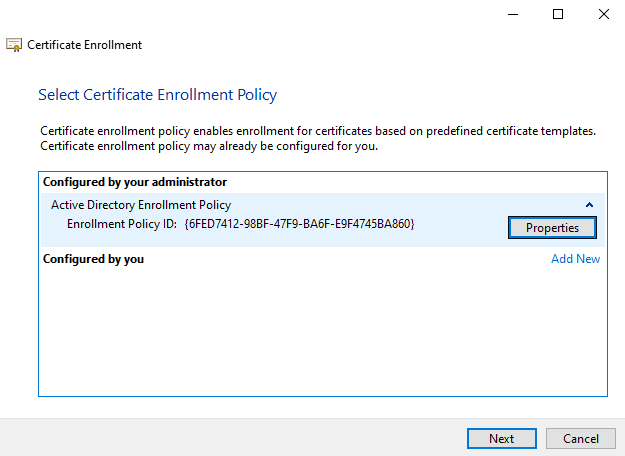

-> The dialog Certificate Enrollment > Select Certificate Enrollment Policy is opened.
Click Next.

Select Certificate Enrollment Policy

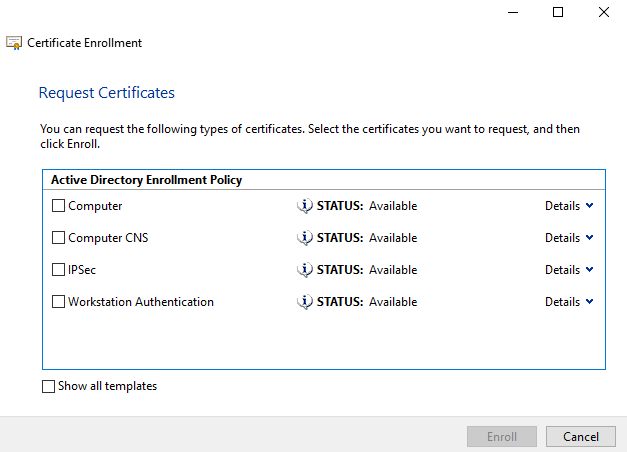

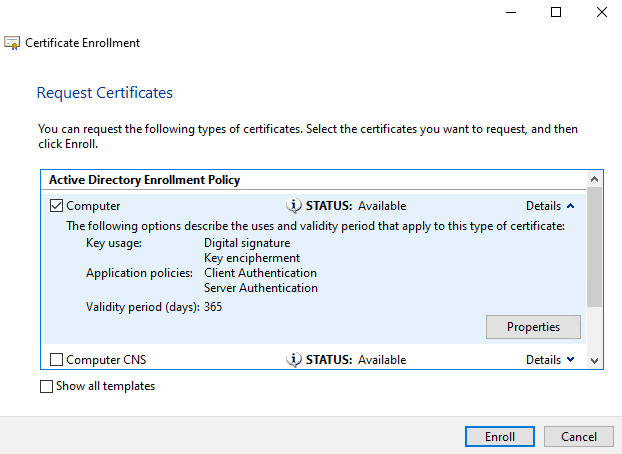

-> The dialog Certificate Enrollment -> Request Certificates is opened.

Request certificates

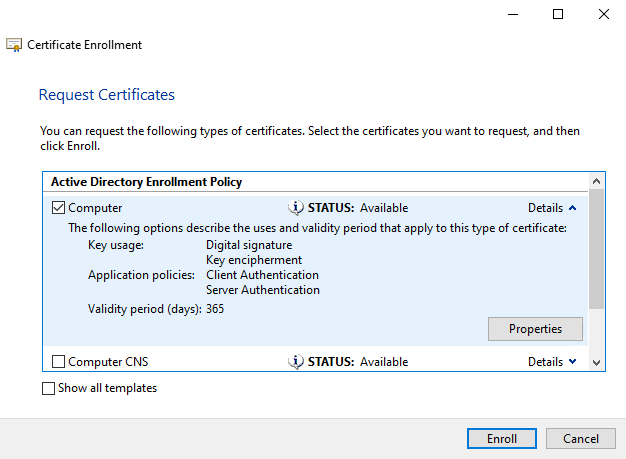

Enable the checkbox under Computer, open Details and click on the button Properties.

	Important
	The Type of Certificate must include Digital signature, Key encipherment and Server Authentication; Client Authentication is optional.

Selection "Computer"

-> The dialog Certificate Properties is opened.

Set respective entries on all tabbed pages.

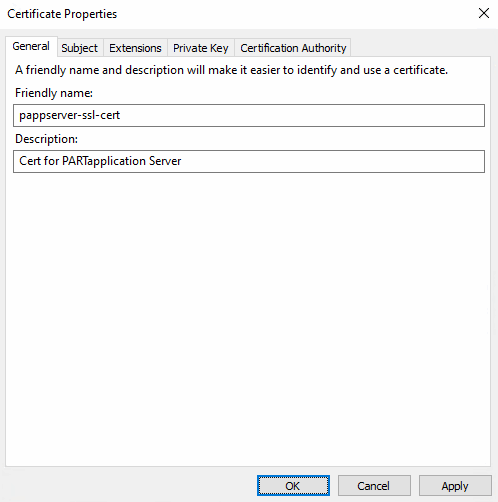

Tabbed page General: Determine Friendly name and Description of certificate.

Certificate Properties > General

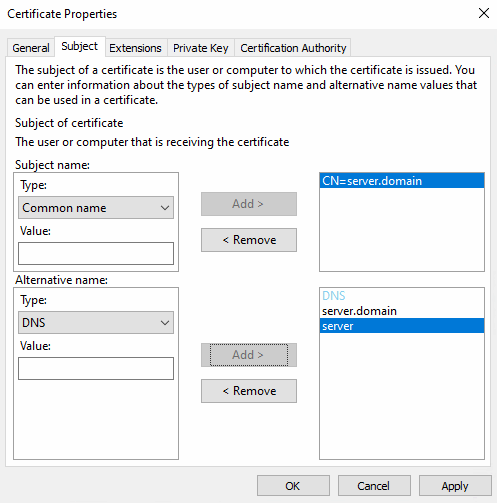

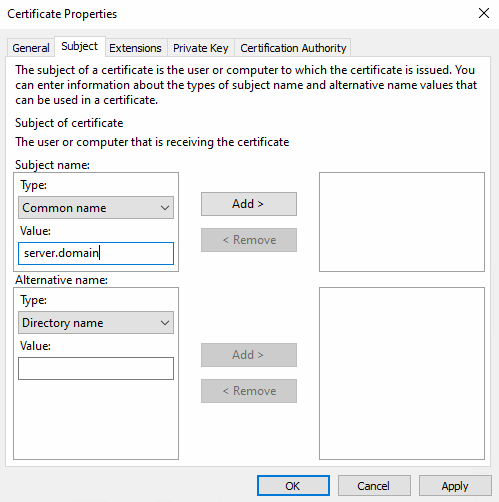

Tabbed page Subject:
Under Subject name -> Type, select the option Common name and under value, enter the following:
```
server.domain
```
Click Add >.

Certificate Properties > Subject

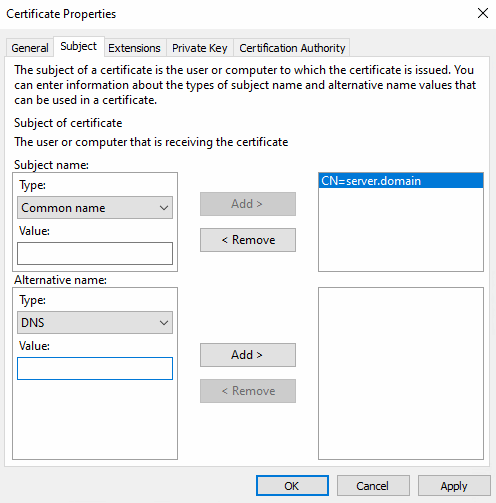

-> Now on the right side, the value "CN=server.domain" is displayed.

Certificate Properties > Subject

Under Alternative name with Type "DNS", add all variants of the server hostname and click Add > for each.

Certificate Properties > Subject

-> The values are displayed on the right side.

Certificate Properties > Subject

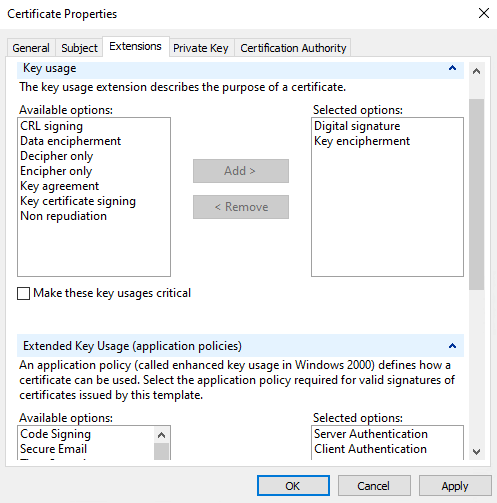

Tabbed page Extensions: Verify that the following key usages are selected:
1. Key usage:
  - Digital signature
  - Key encipherment
2. Extended key usage (application policies):
  - Server Authentication
Certificate Properties > Extensions

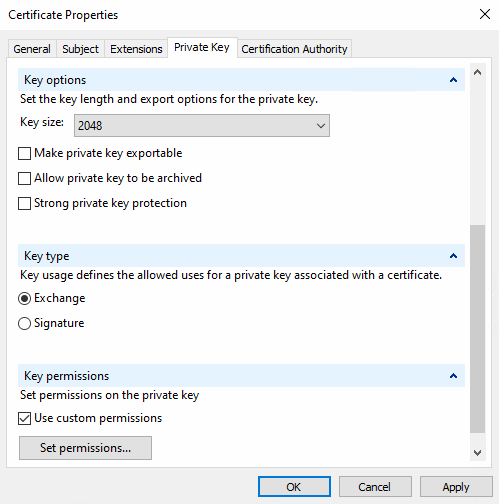

Tabbed page Private Key:

Certificate Properties > Private Key
- Cryptographic Service Provider: Verify the properties.
- Key size: Minimal 2048
- Key type: The option Exchange should be selected.

  Certificate Properties > Private Key
- Key permissions: Enable the option Use custom permissions and then click on the button Set permissions.... Set those permissions that the user that runs the appserver has access to the private key.

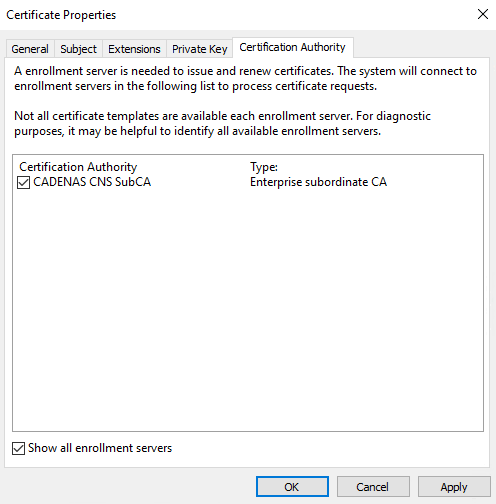

Tabbed page Certificate Authority: Choose the certificate authority that shall sign.

Certificate Properties > Certification Authority

Confirm with OK.

-> The dialog Certificate Properties is closed and now the dialog Certificate Enrollment, Request Certificates is displayed again.

Request Certificates

Click Enroll.

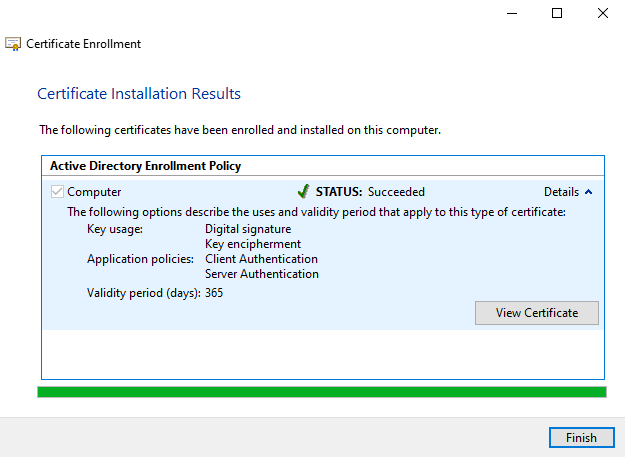

-> Now you should have your new server certificate already in the store.

Certificate Installation Results
Click Finish.
