2.1.1.1.4. Image export: Option "2D shortened view" added

For the image export, the option 2D shortened view has been added.

Precondition for the use is that the respective option is provided by the manufacturer.

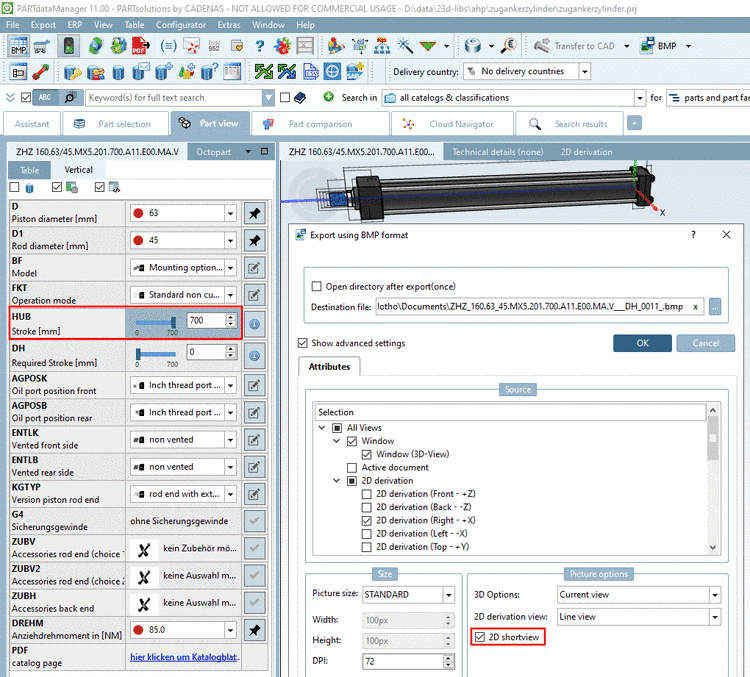

Example: Export using BMP format - Option "2D shortened view"

Example: Export using BMP format - Option "2D shortened view"

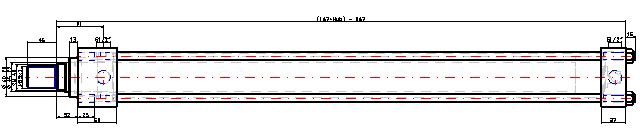

Result after export with option "2D shortened view" disabled

Result after export with option "2D shortened view" disabled

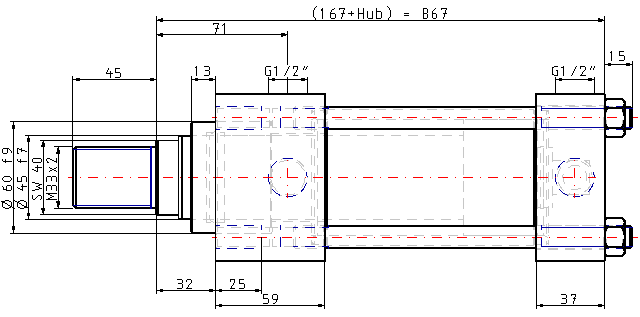

Result after export with option "2D shortened view" enabled

Result after export with option "2D shortened view" enabled
