Welcome

Before executing the setup program, close all opened Windows programs.

Welcome to the eCATALOGsolutions Setup Wizard

End-User License Agreement

Accept the terms of the license agreement and then click Next.

End-User License Agreement

Destination Folder

Determine the folder where the software shall be installed.

The Change... button enables to select another folder than the preselected.

Note Do not change the default paths without consultation.

Click on Next.

Destination Folder

Deployment: This feature can/should also be used for client deployment. Then an image created by admin/consultant can be distributed to the clients via copy or share. Only files without system entries are copied. You can create as many copies as you want (of course each time with another target directory).

Destination Folder

Note Do not adjust the paths of Cadenas DATA, Cadenas SITESETUP, Cadenas Pool and Cadenas User without consultation.

Note POOL may not be under DATA!

Destination Folder

Product Features

Product Features

Click Install.

-> The installation is started.

Installing eCATALOGsolutions

Completed the eCATALOGsolutions Setup Wizard

Once the installation finished, this message appears. Click on Finish in order to exit the Setup Wizard.

Exit Setup Wizard

Enable interfaces

By default, the chosen interfaces are enabled during the installation process. In PARTadmin, under Category CAD integration, you can check this and if needed, enable or disable interfaces. On this see Section 1.3.3, “ CAD integration ” in PARTsolutions - Administration Manual.

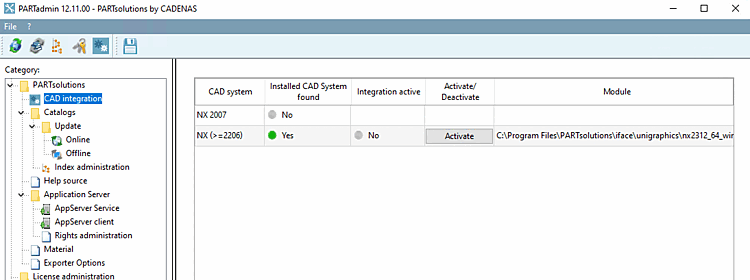

Category "CAD integration"

Open PARTadmin -> License administration and install an already received license on the tabbed page Licenses via Add file...:

Otherwise request a license on the tabbed page Request licenses online.

Request licenses online

Details on licensing can be found under Section 1.4, “ License administration ” in PARTsolutions - Administration Manual.
