3.1.18.3. Icons on project level

3.1.18.3.1. Classification icons
3.1.18.3.2. Available analyses
3.1.18.3.3. Obsolete standard part/manufacturer part

The following icon can occur on project level.

Project types

As soon as all directory levels are browsed through at the deepest level the project type is displayed.

Bitmap

Meaning

2D part

2D-Shell part

3D part

2D/3D part

Bearing

Assembly: Template

Assembly: Configuration

Assembly: Table project

Document project, e.g. *.pdf, *.txt, etc.

...starts PARTassistant, via which alternative masks for the part selection can be displayed. See Section 3.1.6.4.16, “ Web assistant (provided by customer) ”.

No CAD

In the index tree, optionally informative icons can be displayed (see Abgelöste(s) Norm/Kaufteil).

Bitmap

Meaning

Obsolete Standard without substitution, end of live date is still in the future. Please do not use for new creation.

Obsolete standard without substitution, end of live date already reached, thus part is locked.

Obsolete standard replaced by minimum one other part family, end of live date of obsolete part is still in the future. Please do not use for new creation. As replacement use one of the other offered products.

Obsolete standard replaced by minimum one other part family and the obsolete standard is locked, End of live date of obsolete part is already reached, thus obsolete part is locked. As replacement use one of the other offered products.

On project level in the "Symbols" view optionally informative icons can be displayed in the top left corner.

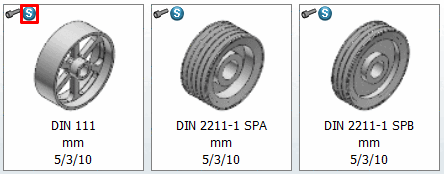

Example: Icon Standards Classification

Example: Icon Standards Classification
