3.1.7.6.4.  Measuring grid

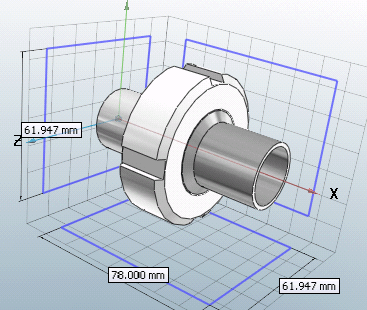

When you activate the context menu command Measuring grid inside the 3D window, the maximum dimensions are displayed.
