5.8.2.2.1.  Create project template

Under $CADENAS_SETUP/prjtmpl/default you can find default templates, which are available when creating a new project.

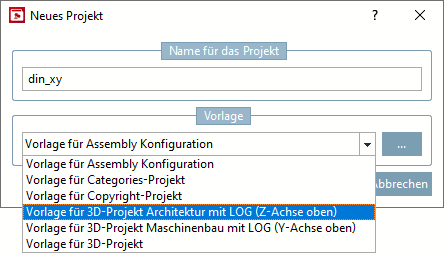

"New project" dialog box

"New project" dialog box

As of V12 there is the possibility to extend the list with additional personal templates created from existing projects:

  1. Select the desired project, from where you would like to create the template and click on the context menu command Create project template.

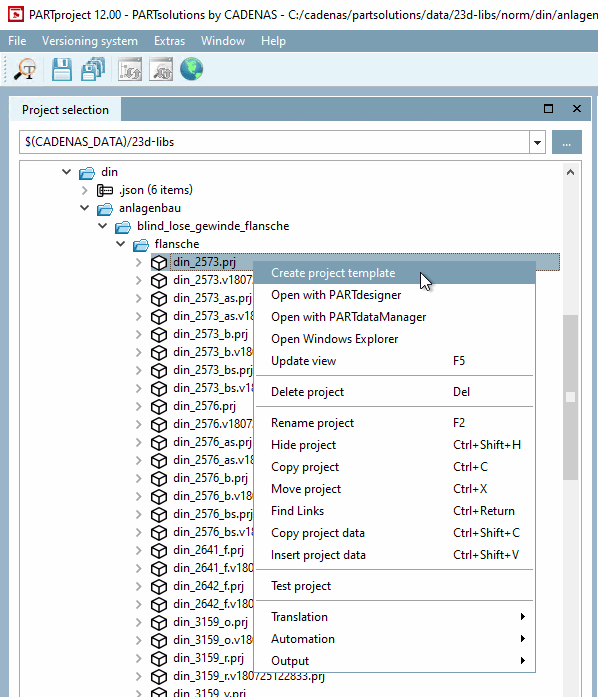

    Create project template

    Create project template

    -> The dialog box Creating a new template for a project is opened.

  2. Under Template name, enter the desired name and confirm with OK.

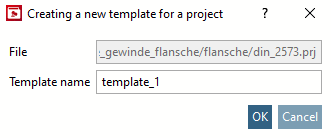

    Creating a new template for a project

    Creating a new template for a project

  3. With a click on the context menu command New project, open the same-named dialog box.

  4. Open the list field under Template. Now the template created before can be used for each new project.

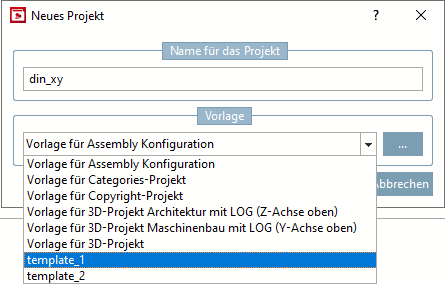

    New project -> Template

    New project -> Template
