1.6.1.3.1.21. Classification connection point: Instance and Condition

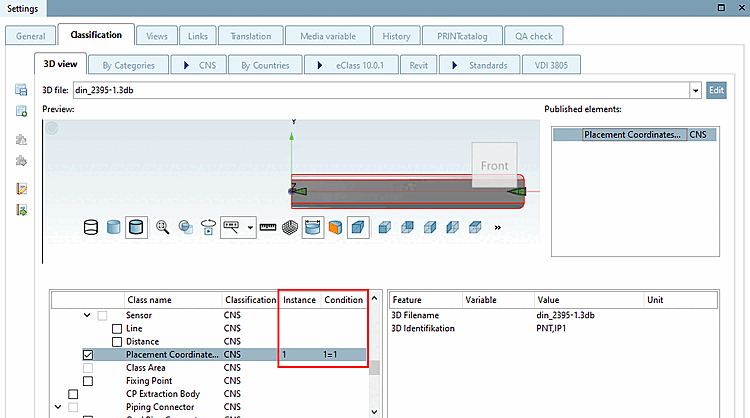

Now as of V12 under Published elements, for classes an instance name and a condition can be entered.

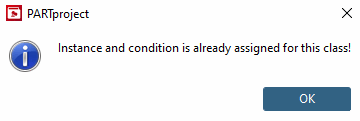

Naming two class instances the same with the same condition is not possible. In this case a respective message is displayed.

Selecting classes without 3D identification or 3D filename is not possible.
