1.6.1.3.1.14. Fast data copy from one project to another

As of V12 there is a new function for copying project data.

  • All data of all categories of tabbed page General such as Project type, Shortname, Author, Company key, for example.

  • Classification data (CNS, eClass, Standards, etc.)

  • Views: 2D derivation

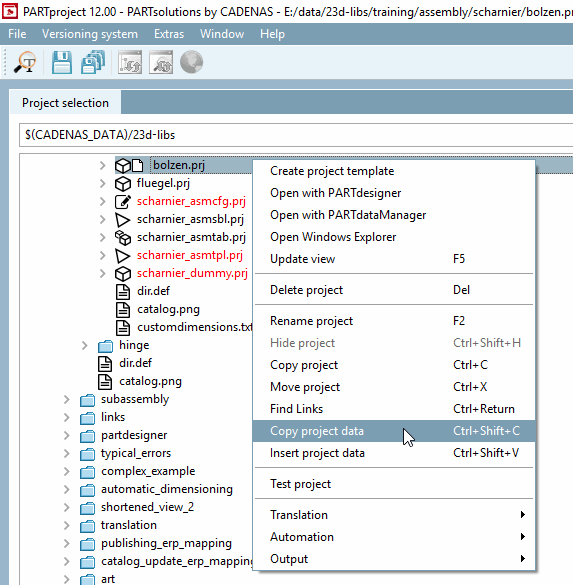

  1. Select a project in the tree and in the context menu, select the command Copy project data or alternatively Strg+Shift+C.

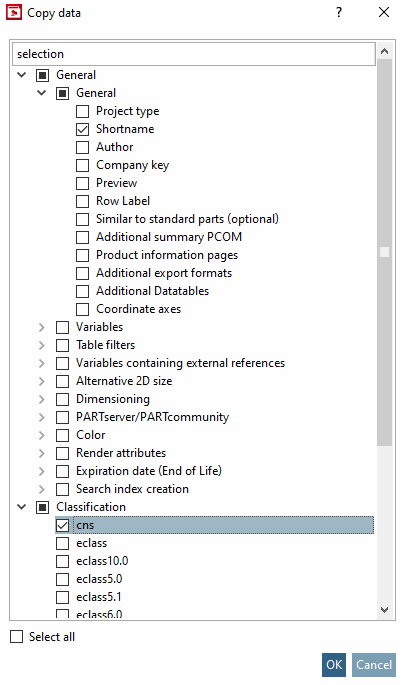

    -> The dialog box Copy data is opened.

  2. At desired data classes or single options, enable the checkbox.

  3. Select the desired target project and there, execute the context menu command Insert project data (alternatively Strg+Shift+V).
