2.5.7.2.5. Add PARTsolutions commands to NX context menu

PARTsolutions commands can be added to the NX context menu.

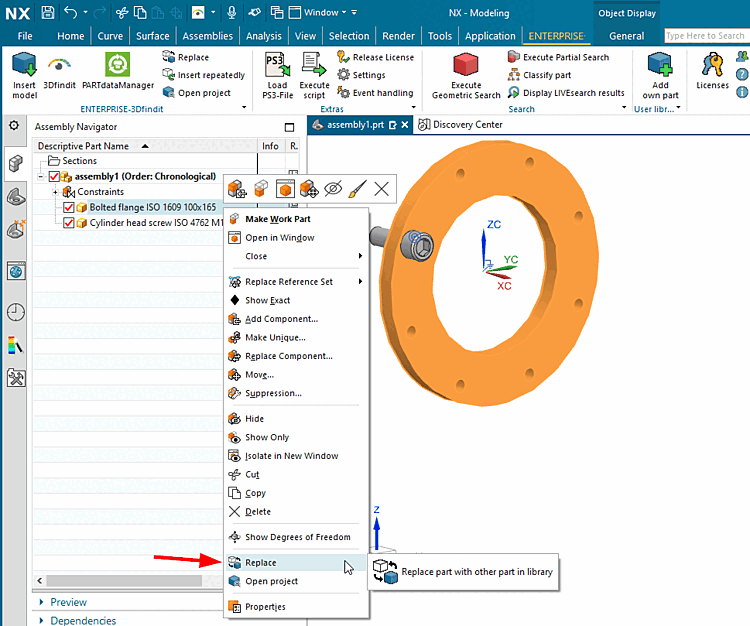

NX context menu command "Replace"

NX context menu command "Replace"

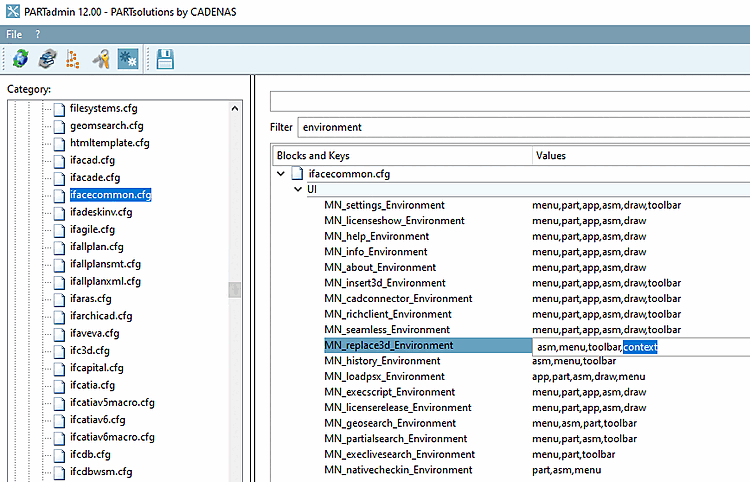

In order for the Replace command to be automatically created by default, in the configuration file ifacecommon.cfg, block [UI], MN_replace3d_Environment, the keyword "context" is set.

MN_replace3d_Environment

MN_replace3d_Environment
