4.4.1.9. Placement dialog box with preview dimensioning views

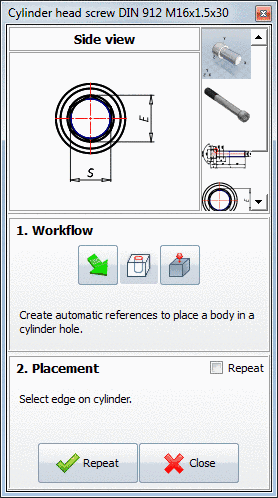

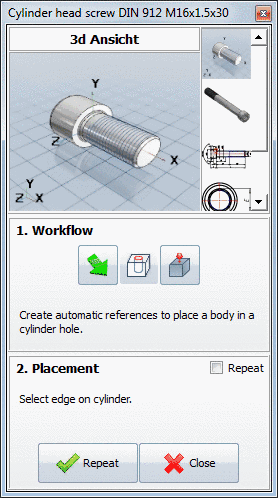

Now the placement dialog box shows preview dimensioning views in addition to the 3D view.

Load the desired preview by clicking on the tiny pictures at the right side.
