1.6.1.3.1.10.  Edit tables in batch run: Insert sketch

Especially in projects with many 3dbs or with connection points used again and again, certain sketches are multiply used, where copying is very time consuming. Much more simple and time saving is copying of sketches via batch run.

Using the function Edit tables in batch run, option Insert sketch, a selected sketch is added in all projects and there in all 3dbs.

The new sketch is added with consecutive number in the 3D History.

  1. Save the sketch to be copied (*.hsk file) at any location.

  2. At the same project (to copy into all 3dbs there), another project or a directory, click the context menu command Automation -> Edit project in batch mode.

    -> The dialog box Edit tables in batch run is opened.

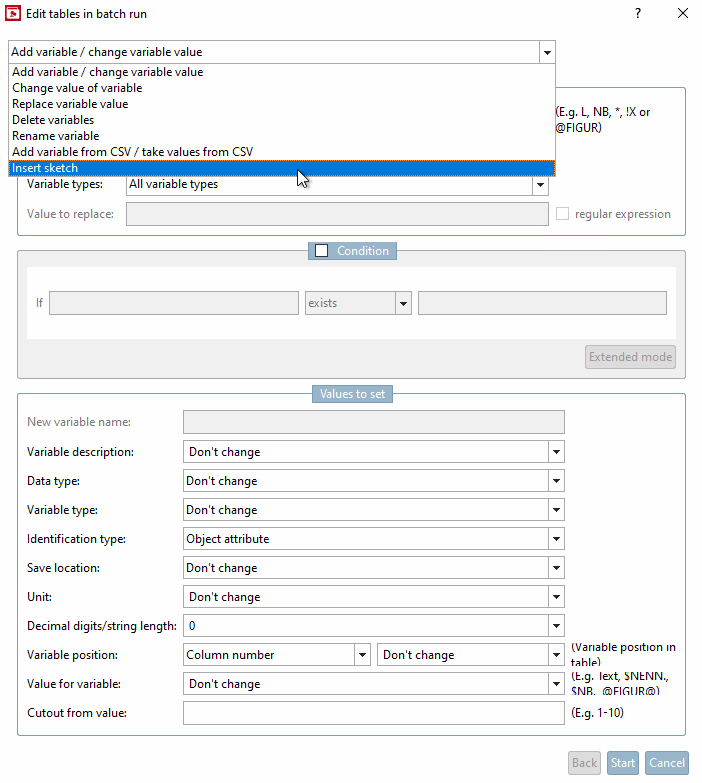

  3. In the uppermost list field, select the option Insert sketch.

    Insert sketch

    Insert sketch

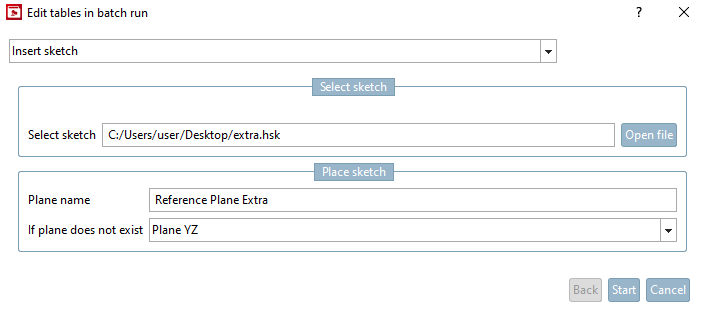

  4. Select sketch: Click on the button Open file and enter the path to the sketch file.

    Plane name: Enter the plane name, where the sketch shall be inserted.

    If plane does not exist: Either select the option Do not add sketch or a certain plane.

    Dialog box "Edit tables in batch run"

    Dialog box "Edit tables in batch run"

  5. Click on Start.

    -> The sketch is inserted in all 3dbs in all projects.

    [Important]Important

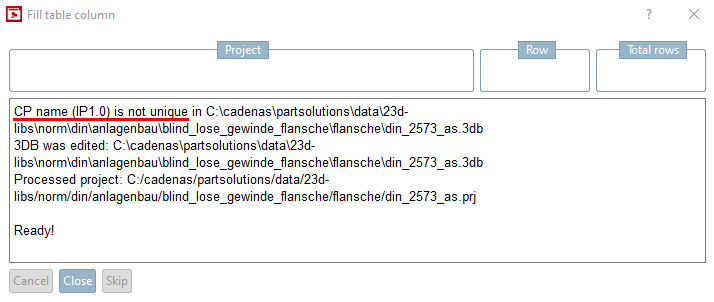

    Duplicates of connection points are listed in a notification.

    CP Name (IP1.0) is not unique

    CP Name (IP1.0) is not unique

    Duplicates are allowed if only one connection point is active. However, this must be ensured!
