1.3.1.2.5. Disable list field for the vertical table (PARTdataManager)

In V12, in PARTdataManager, the vertical table shows a list field selection for calculated variables (based on attribute algorithms) by default.

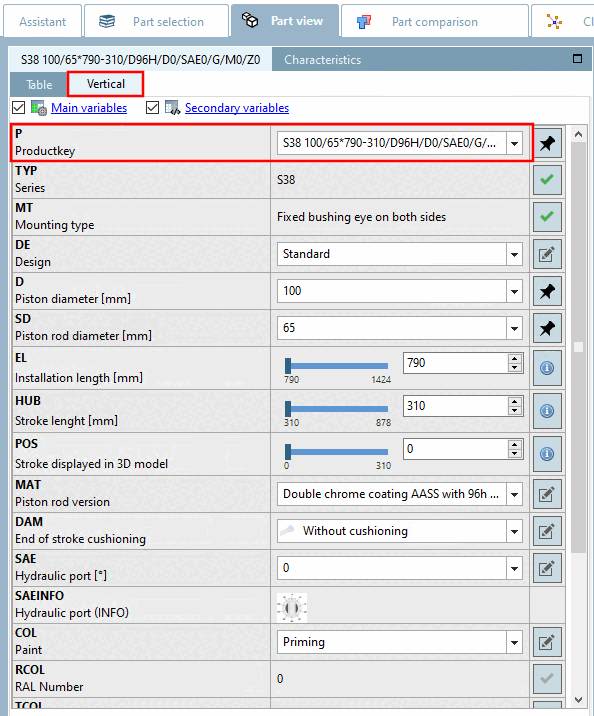

PARTdataManager: List field selection for "Product key"

PARTdataManager: List field selection for "Product key"

However, you can disable the list field for certain (or all) variables of this type. When clicking on ..., under Calculated variable values without list selection (vertical table), the dialog box Variable list is opened.

Activate the desired variables and confirm with OK.

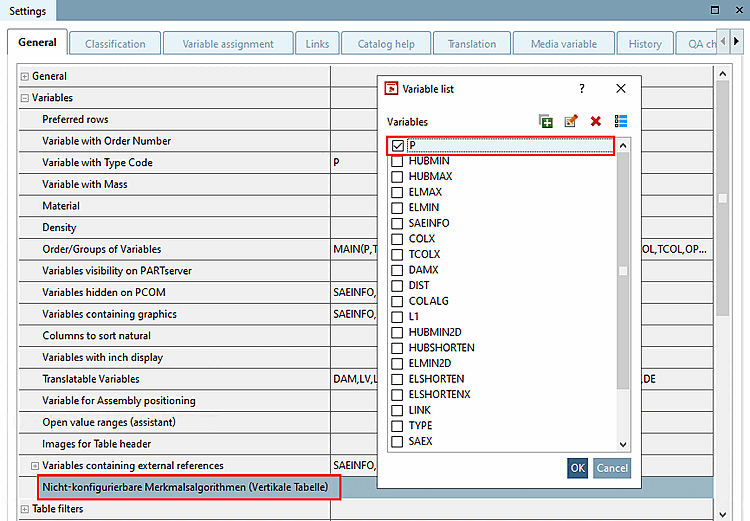

PARTproject: For variable 'P', the list field selection is disabled.

PARTproject: For variable 'P', the list field selection is disabled.

-> Now the list field selection is disabled for the specified variables.

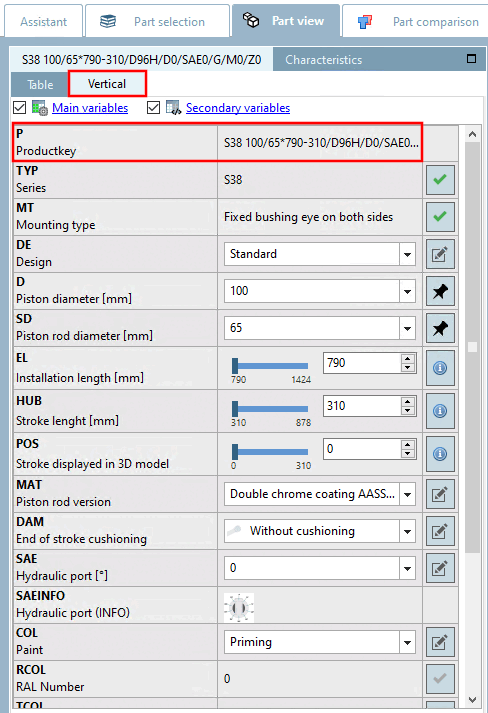

PARTdataManager: List field selection disabled for "Product key"

PARTdataManager: List field selection disabled for "Product key"

[Note]Note

In V11 the list field was basically disabled for calculated variables.

[Note]Note

In particular, regard the following for the product key:

The list field only shows the keys based on currently set values. Theoretically, a huge amount of combinations is possible. Compare Section 5.12.7, “Classification according to CNSORDERNO / CNSTYPECODE ” in eCATALOGsolutions Manual.
