5.12.11.1.3.1. Project creation

When creating the project, the correct axis alignment should already be taken into account by selecting the correct template.

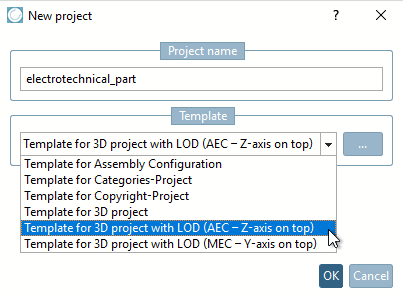

Template for 3D project with LOD (AEC – Z-axis on top)

Template for 3D project with LOD (AEC – Z-axis on top)

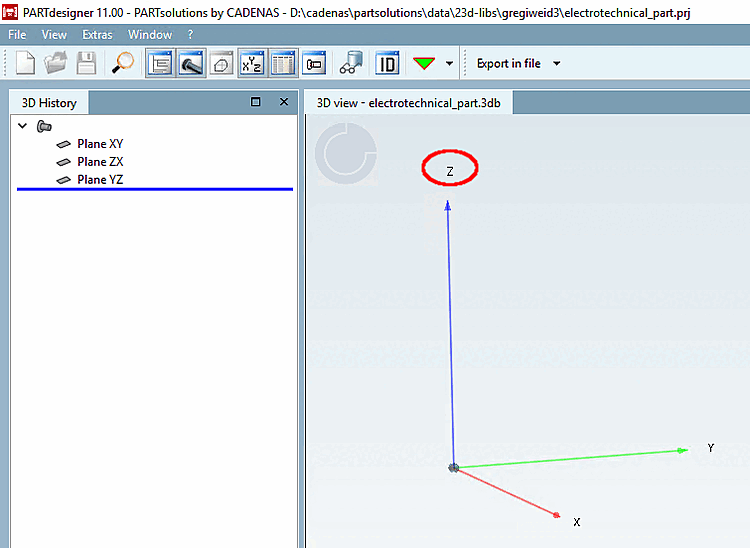

Result:

Template for 3D project with LOD (AEC – Z-axis on top)

Template for 3D project with LOD (AEC – Z-axis on top)
