1.3.4.6.1. PARTdataManager: Actions in the search result list

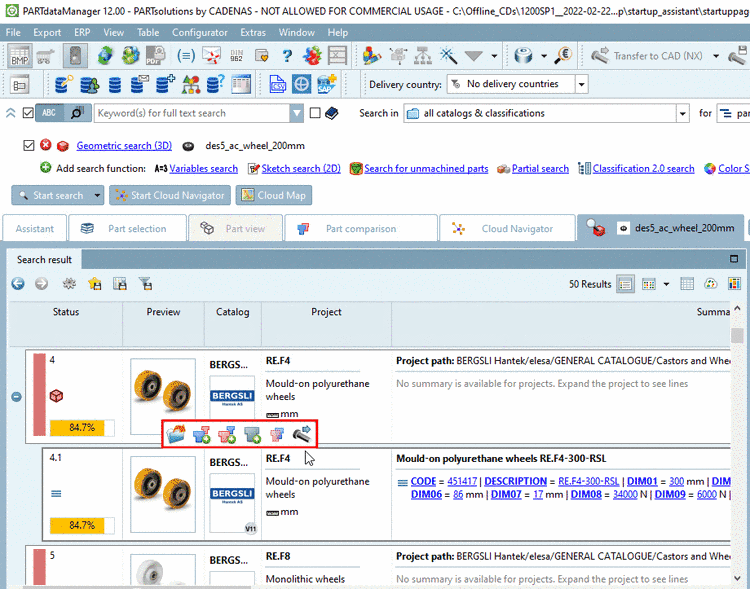

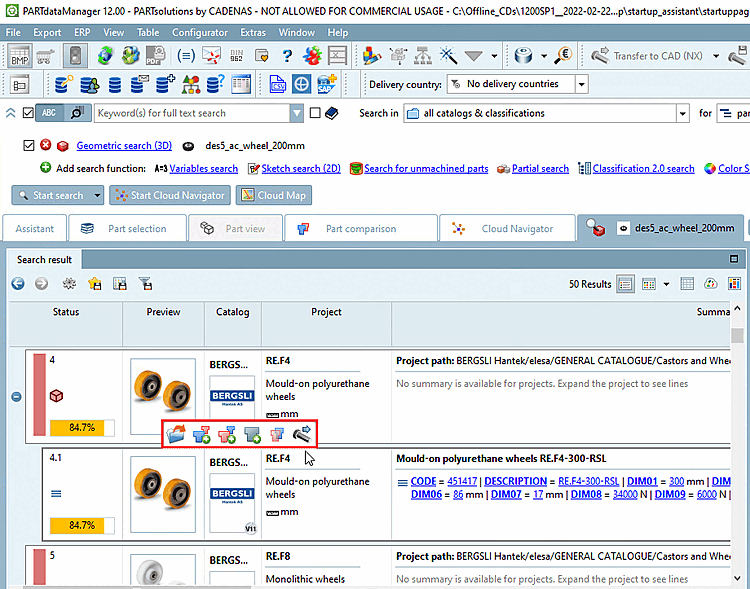

You can perform the following actions on the selected line via context menu or button:

When moving the mouse over a result line different buttons show up.

Open:

Click on the icon to open the part in the parts view [Part view] of PARTdataManager opens

Load as first part Load component as 1st component in the component comparison [Part comparison] (thus simultaneously in the 3D/2D view)
Load as second part Load component as 2nd component in the component comparison [Part comparison] (thus simultaneously in the 3D/2D view)
Add to component comparison [Add to part compare]

Load component into the component comparison [Part comparison]

In the tabular comparison, you can use the icon / Icon to load parts into the 3D or 2D view.
Compare to search-part

The selected part is loaded as 2. project in direct compare to the search-part.

Transfer to CAD [Export to CAD]:The icon is only displayed for individual parts (characteristics), not for part families. Click on the icon to transfer the relevant part to CAD.

Details on the component comparison can be found under Section 1.3.10, “ Part comparison ”.
