4.4.2.1.2. Geometric search (individual part in assembly)
You can search for individual parts of an assembly both in manufacturer catalogs and in in-house parts catalogs.
Open the desired module.
Open
the Geometric Search (
3D Form
Search [3D Shape Search] ).

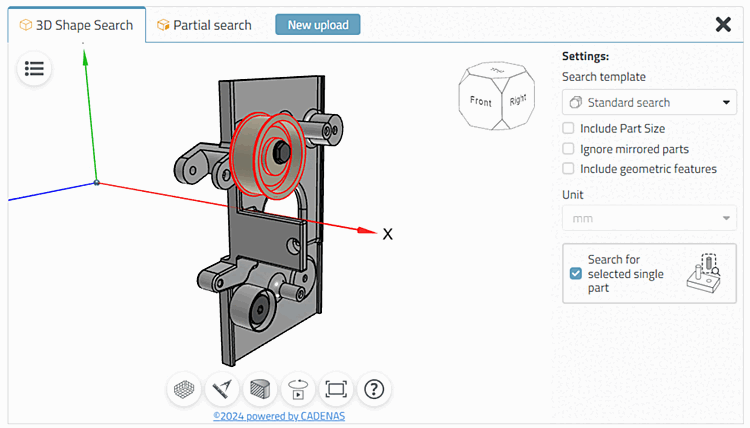

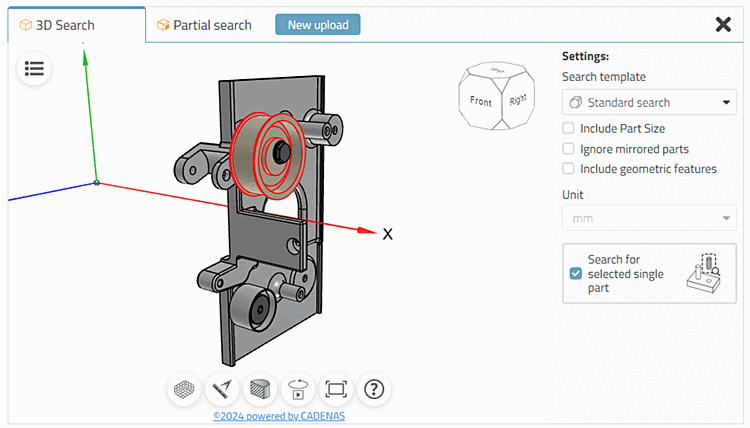

Select an individual part of the assembly in the 3D preview.
Activate the Search for selected item [Search for selected single part] option.

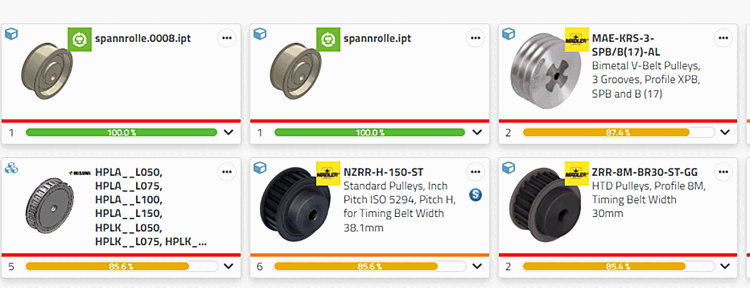

Start the search.
Example:
