3.2.26.  Add bevel/rounding... with the blend feature
Prev  Next

3.2.26.  Add bevel/rounding... with the blend feature

Purpose of the blend feature

  • Optimization of the construction process

    [Note]Note

    The blend feature should always be the last step, meaning at the very end of modelling. (Only exception is, if there are complications with the tangent continuous.)

  • Enabling of blends in more installation situations than before

  • Reduction of features

  • Reducing the expenditure of time, particularly for use cases, in which a blend can not be easy integrated in the sketch

  • Simplifying the post-processing of blends

  • Simplifying the rendering

Example:

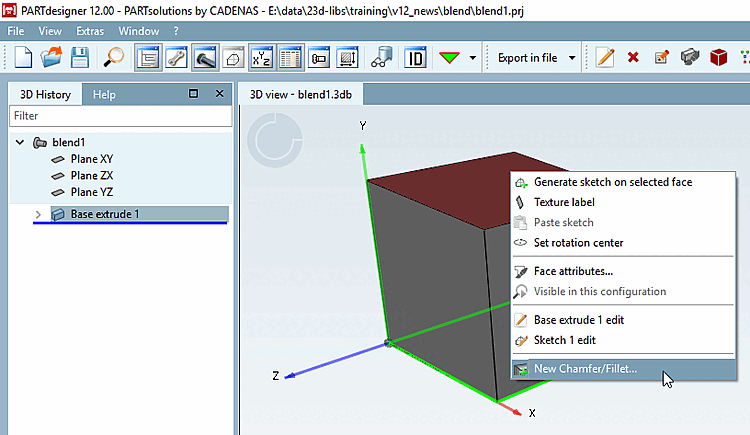

Call with context menu command "Create new chamfer/rounding. [New Chamfer/Fillet...].."

Call with context menu command "Create new chamfer/rounding. [New Chamfer/Fillet...].."

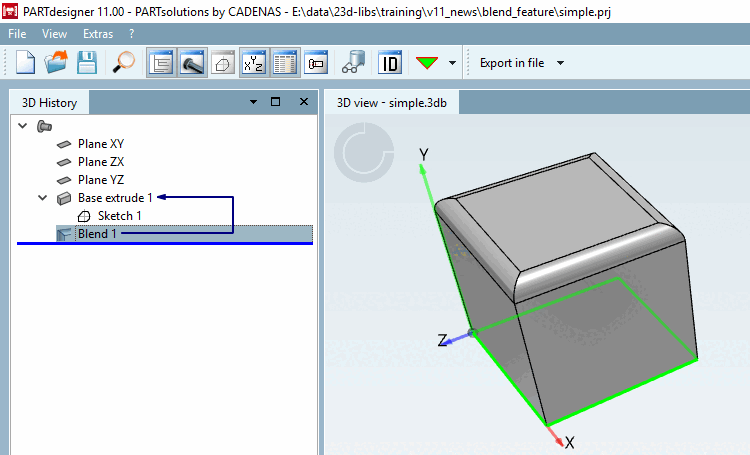

Blend created

Blend created

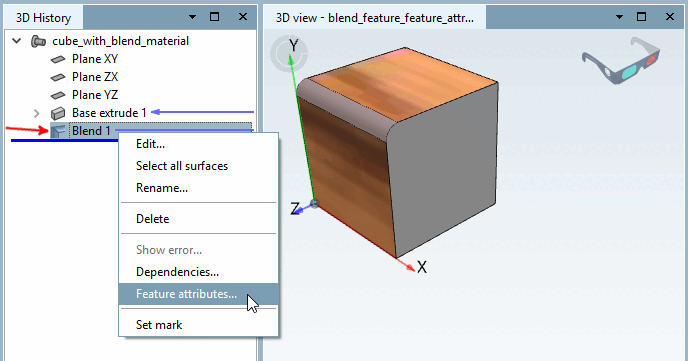

Setting of face attributes like color or material is also possible.

Setting of face attributes like color or material is also possible.

All information on this feature can be found under Section 7.6.2.12, “ Blend ( add chamfer/rounding...) ”. Please read this information carefully.
