3.1.16.6.2. Part view context menu commands

3.1.16.6.2.1. Overview

In the following you will get an overviw on the context menus.

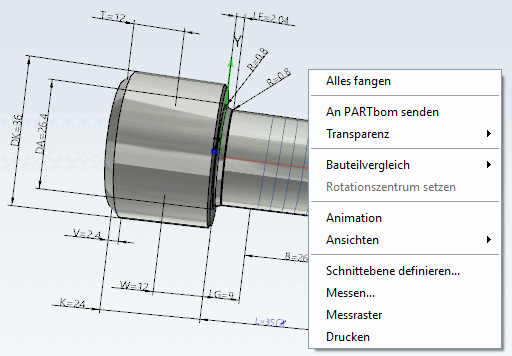

Context menu: Individual part [Single part] - 3D view

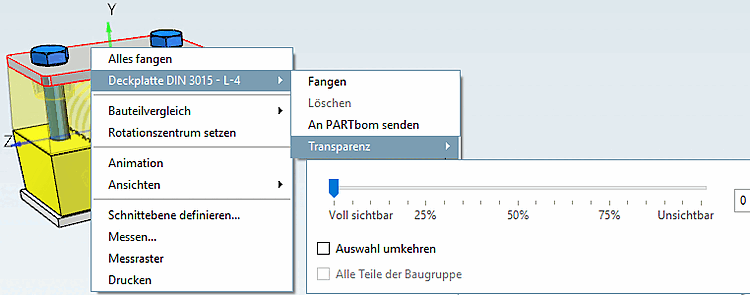

Context menu: Assembly - 3D view - Call on selected part - Submenu "Selected part" -> "Transparency [Transparency] "

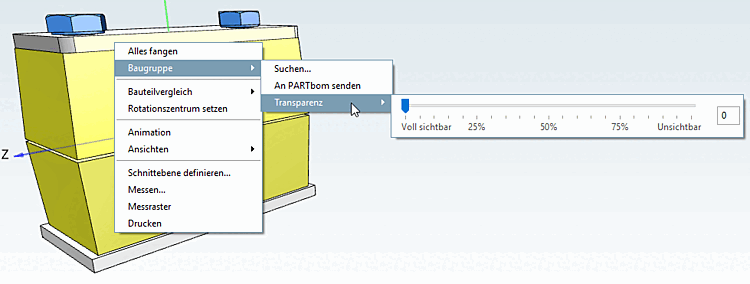

Context menu: Assembly - 3D view - "Assembly [Assembly] " -> "Transparency [Transparency] " submenu

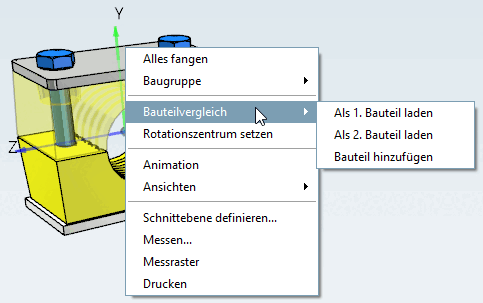

Context menu: Assembly - 3D view - "Component comparison [Part comparison] " submenu

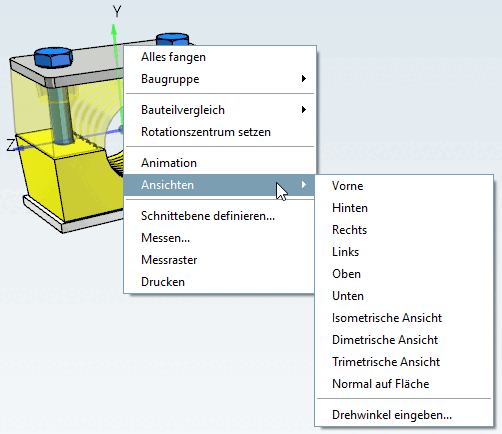

Context menu: Assembly - 3D view - "Views [Views] " submenu

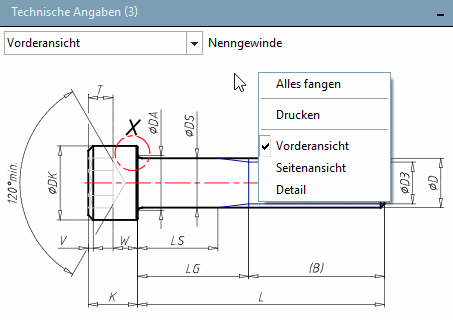

Context menu: Individual part [Single part] - Technical data [Technical details]

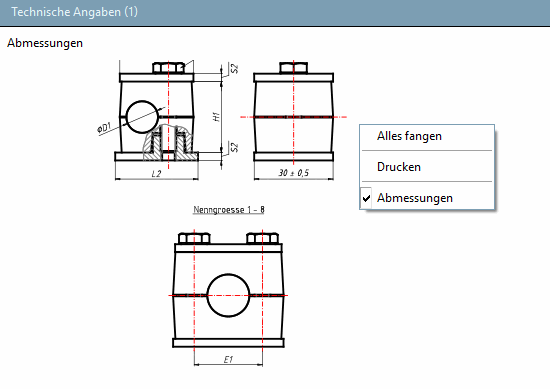

Context menu: Assembly - Technical data [Technical details]

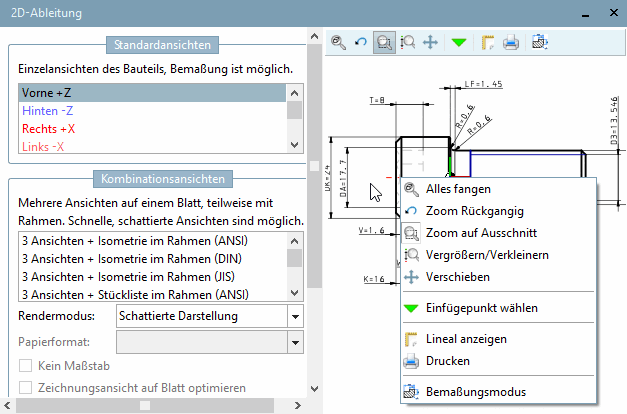

Context menu: Single part - 2D derivation

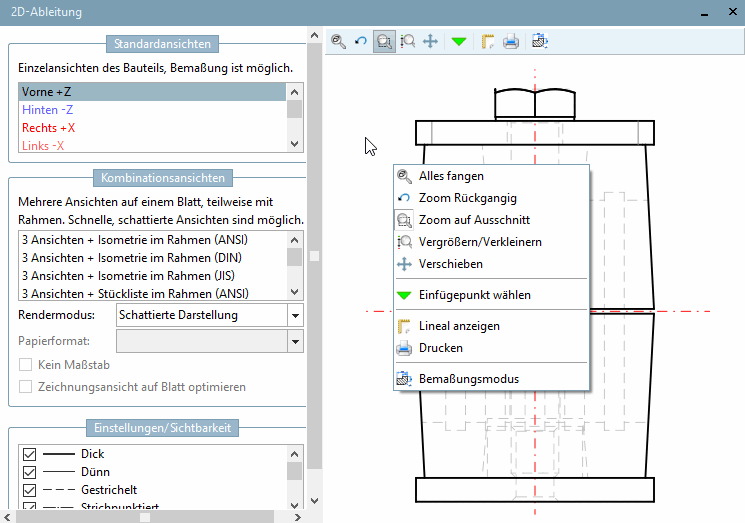

Context menu: Assembly - 2D derivation
