1.4.1.2.4. 3Dfindit: Edit/delete data set

/ Edit/delete record in link database

The function is used to change LinkDB values such as material. This applies regardless of whether it is a standard line or a variant. A value added to the characteristic attribute table (variant) cannot be changed with this function.

  1. Select the desired line.

  2. Click on the button.

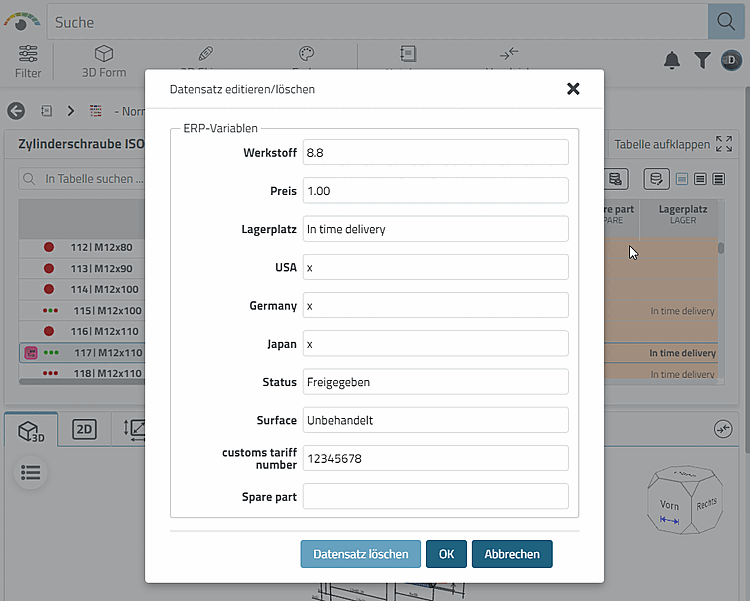

    -> The Edit/Delete data record [Edit/delete dataset] dialog box opens.

  3. You now have 2 options:

    • Edit the values of individual ERP variables and then confirm with OK.

    • Click on the Delete data record [Delete dataset] button.

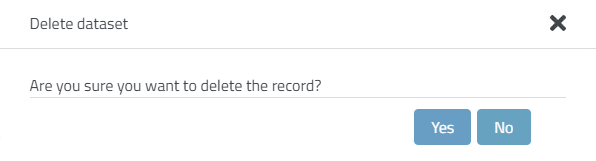

      -> Are you sure you want to delete the data record? [Are you sure you want to delete the record?]

      Confirm with Yes.

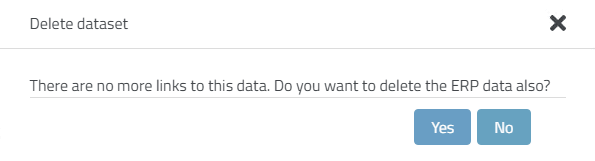

      -> There is no further link to this data [There are no more links to this data]. Delete ERP data as well? [Do you want to delete the ERP data also?]

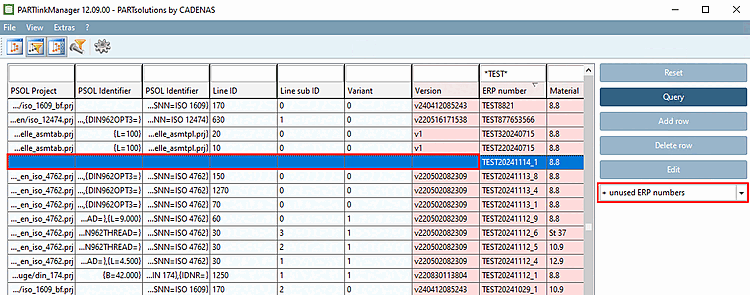

      If you answer No, the data record remains with the ERP number and the ERP fields created (see following figure), otherwise the data record is deleted completely.

      PARTlinkManager > + unused ERP numbers

      PARTlinkManager > + unused ERP numbers
