7.9.3.3.2. Delete using the entry in the "Sketch History" docking window
7.9.3.3.2.2.  Conditionally Delete Element
Prev  Next
7.9.3.3.2.2.  Conditionally Delete Element

element conditional delete [Delete element with condition] in the Sketch History [Sketch history] docking window, adds the step Delete element as a dependency on the selected step and deletes Sketcher elements in the Sketcher docking window depending on a defined condition.

  1. In the Sketcher, click on the element you want to remove.

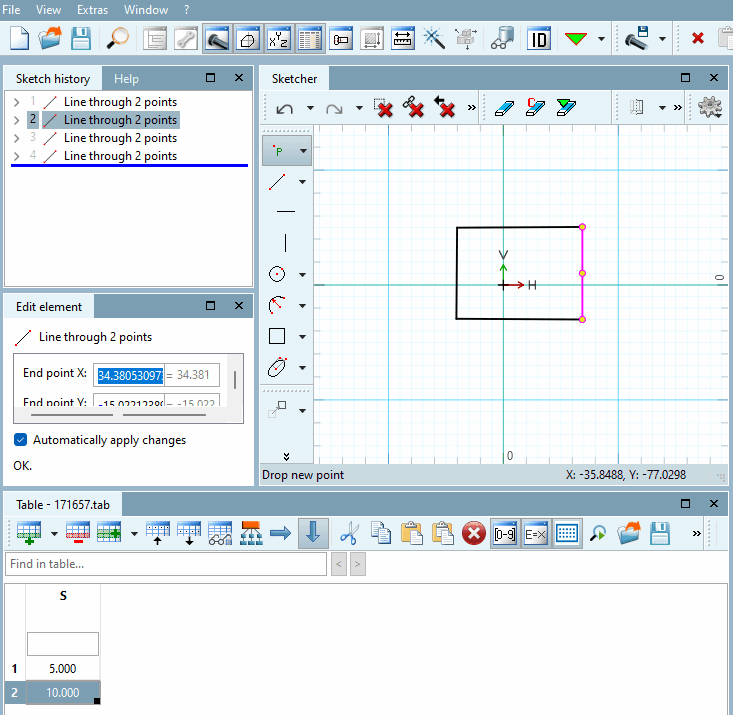

    Selection before conditional deletion

    Selection before conditional deletion

  2. Click on Conditionally delete element [Delete element with condition]. Enter the corresponding formula under Condition.

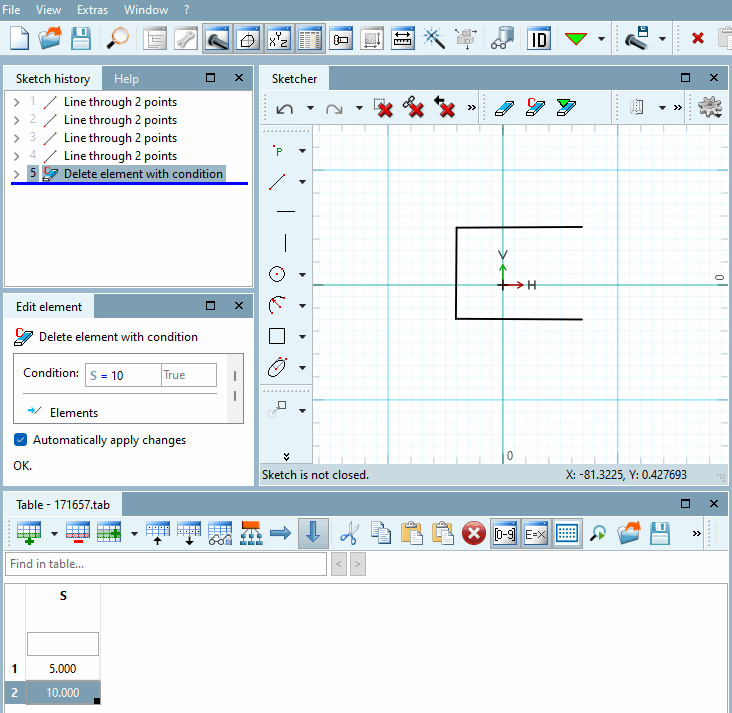

    Result after deletion with condition

    Result after deletion with condition

    → The Delete element step has been added to the history. In the sketch, the element is removed for all subsequent steps if the condition [Condition] is met.
