2.3.6.3.5. Block [DesignTracking]

Attributes that are declared in the DesignTracking block in PARTadmin appear in Inventor under iProperties on the Project and Status tab pages.

The following matrix shows the mapping between PARTsolutions keys and Inventor iProperties field names:

Design Tracking " block -> Key

iProperties -> Tabbed page Project -> field name

iProperties -> Tabbed page Status -> field name

Authority

Authority



Catalog Web Link

Web link



Cost Center

Cost center



Description

Description



Design Status

[Note]Note

Is set at PDM side or possibly ACTIVE_STATE from PARTsolutions

Design status



Language



Manufacturer

Supplier



PartNumber

[Note]Note

May possibly need to be adjusted. In the standard PARTsolutions with ERP connection, the material attribute is called "MAT_NAME".

Part number

Part number

Project

Project



Standard Revision



Stock Number

Stock number

Stock number

User Status

Status

Vendor

Supplier



The following two illustrations show the Project and Status tab pages.

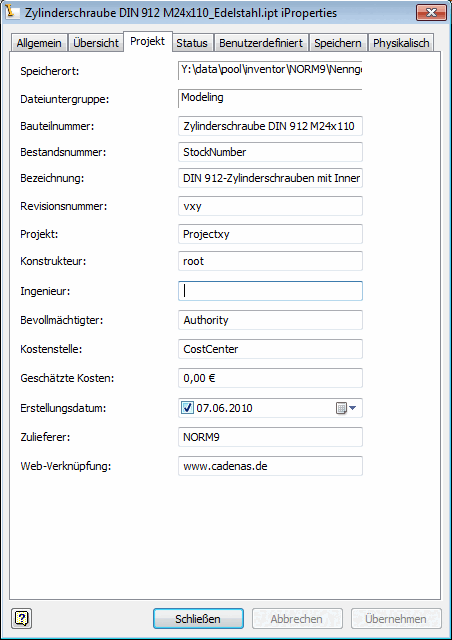

Part -> iProperties -> Tabbed page "Project"

Part -> iProperties -> Tabbed page "Project"

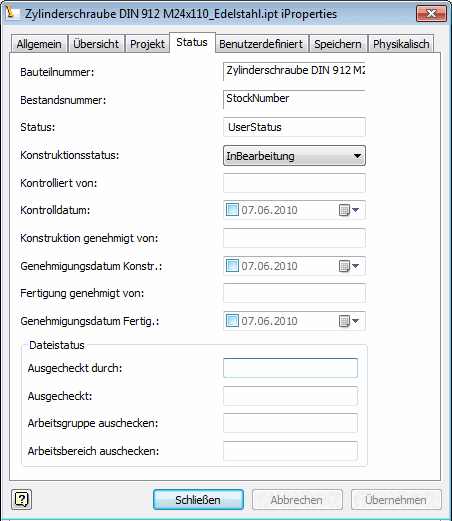

Part -> iProperties -> Tabbed page "Status"

Part -> iProperties -> Tabbed page "Status"
