4.15.3.4. User interface of Update Manager

4.15.3.4.1. Icons in the Catalogs dialog area

You can filter the directory structure with different methods:

Bitmap	Short info with mouse over icon	Meaning
	Filter tree	In the directory structure everything without update information is hidden.
	Show [Show mapped lines] / hide assigned lines [Show mapped lines]	When you hide already assigned lines, then you can better see, which lines are still to be checked.
	Show [Show lines] / hide rows [Show lines]	When you hide lines, then in fact you have a better overview, but cannot access them.

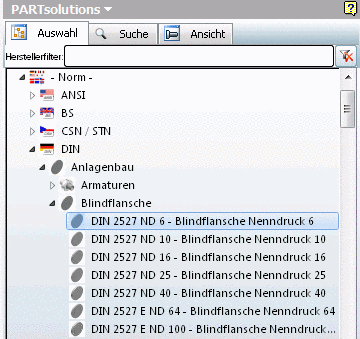

Example

Symbols in the directory structure:

Changes:

Bitmap	Meaning
	The icon with the exclamation mark has the following meanings: The standard name (NB) has changed (see Section 4.15.3.5.2, “Changed standard name”) and/or value range variables have changed.
	Project or line is found at another position in the new version. See Section 4.15.3.5.3, “Moved dataset”.
	The project or line no longer exists in the new version. See Section 4.15.3.5.4, “No correlation to the old dataset found”.

Changes approved:

Bitmap	Meaning
	Approve assignment
	Revoke assignment and save changes

	Note
	If several changes apply the respective symbols are overlapping.

Other symbols:

Bitmap	Meaning
	An update has been performed without LinkDB connection. See Section 4.15.3.3.1, “Update without connection to the LinkDB ”.
	Directory
	Project
	Line (characteristic)
