5.12.11.4.4. Classification of connectors
5.12.11.4.4.1. Classification: Connectors excluded frames
5.12.11.4.4.1.1. Global classification: Symbol MasterSymbol BlockSymbol (CNSELEK|4)
5.12.11.4.4.1.2. Connector Polarization and Connector Coding (CNSELEK|4)
5.12.11.4.4.2. Classification of frames

The basic IEC icons are this: (May 2019) (Hermaphrodite, etc. is missing)

Primary IEC icons for connectors:

IEC icons Meaning
S00031Socket, female
S00032Pin, male

A distinction is made between following types of connectors: (State May 2019)

  • Finished contacts (socket or pin insert)

  • Pin inserts/contact inserts for crimps (socket/pin)

  • Single contacts (crimp contacts) for assembling connectors (socket/pin)

  • Frames, i.e. contact frames (also male/female)

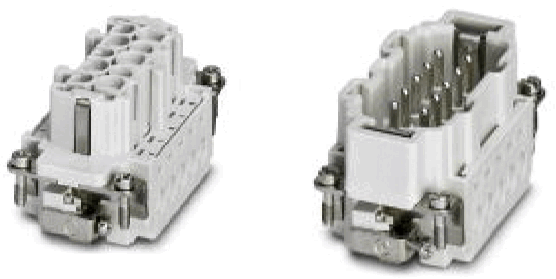

Phoenix contact: finished contacts 1648186/1648173

Phoenix contact: finished contacts 1648186/1648173

Pin insert/contact insert for crimps 1648157 (the system contains slots which can receive crimp contacts)

Pin insert/contact insert for crimps 1648157 (the system contains slots which can receive crimp contacts)

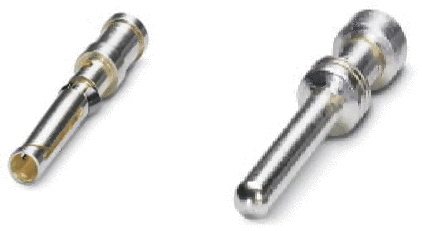

Single contacts (crimps) female/male 1663433/1663572

Single contacts (crimps) female/male 1663433/1663572

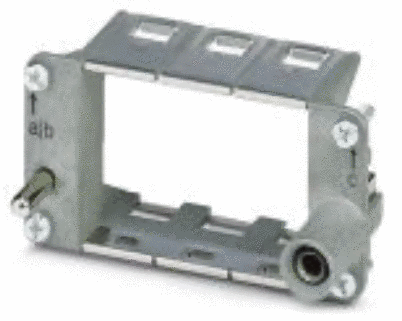

Single contacts (crimps) female/male 1417399

Single contacts (crimps) female/male 1417399
