5.14.1.2. PS3 batch export in PARTproject

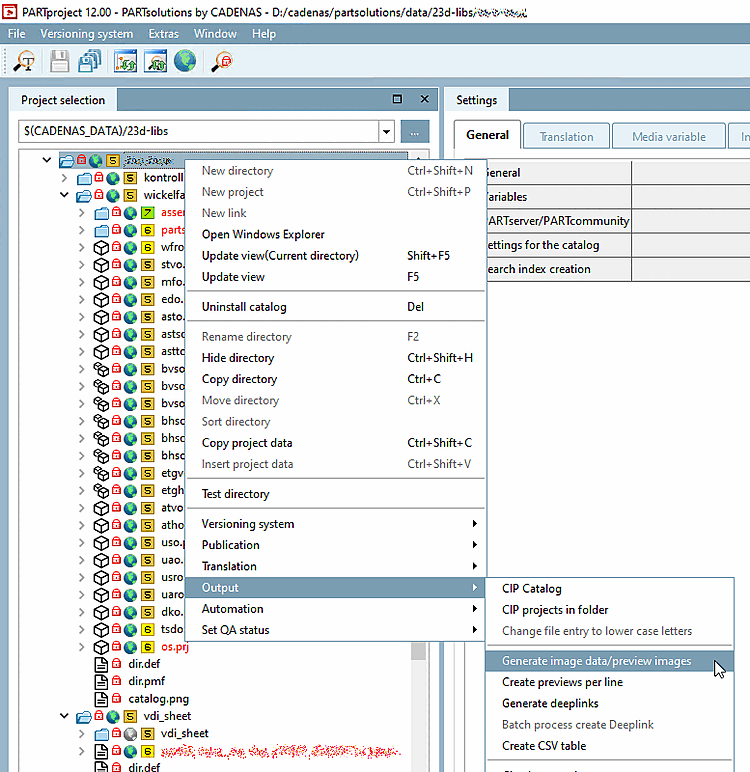

  1. Start the batch export through the Generate image data/preview images function.

    -> The Export files window is opened.

  2. On tabbed pages Default options and View / Export set the red marked options.

    [Note]Note

    For Order Numbers List to work, the Full-Text-Search index has to be updated.

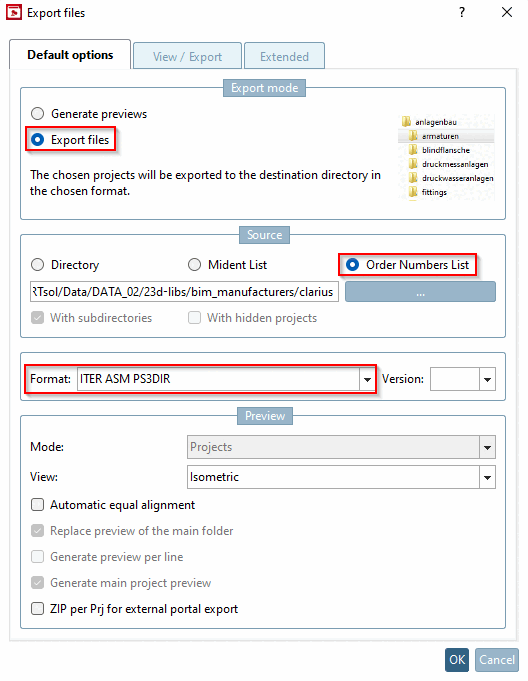

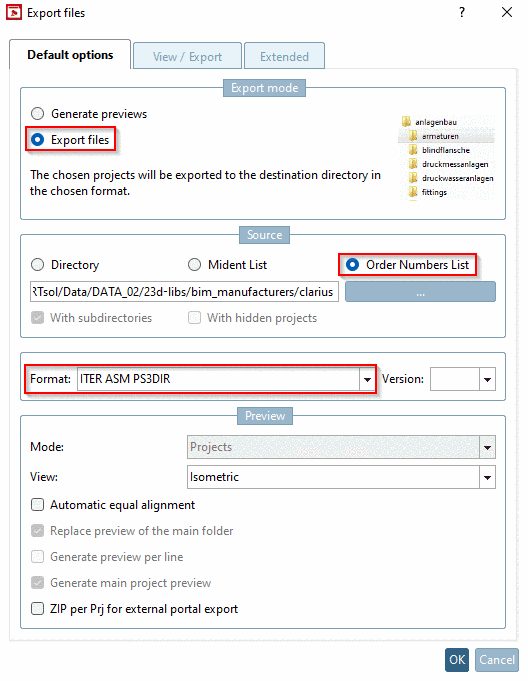

    Default options

    Default options

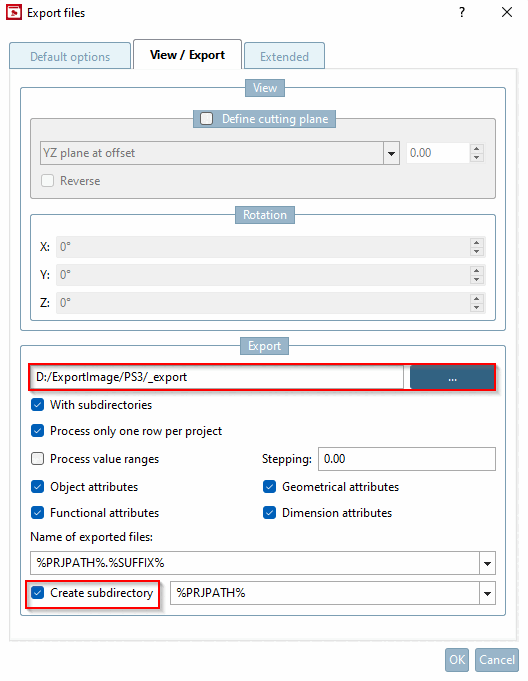

    View / Export

    View / Export

    By confirming the settings the dialog Export using ITER ASM PS3DIR format is opened.

  3. In the following window, the specifics for the PS3 export can be configured.

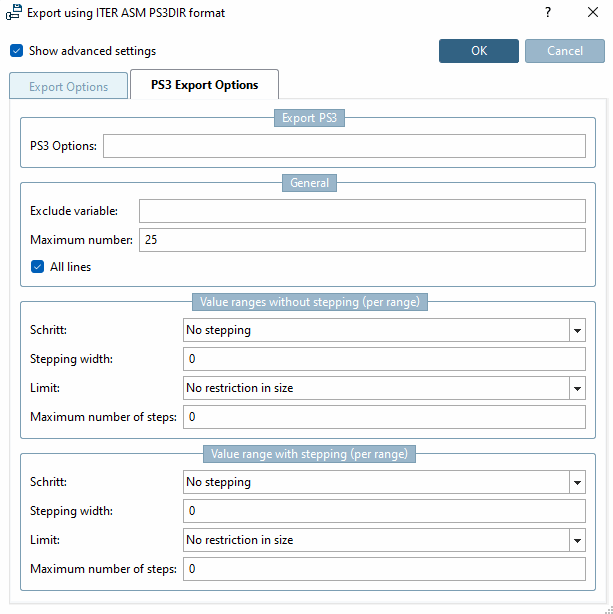

    Export using ITER ASM PS3DIR format

    Export using ITER ASM PS3DIR format

Once everything is set up for the PS3 export, the files get exported to the configured folder on the system.

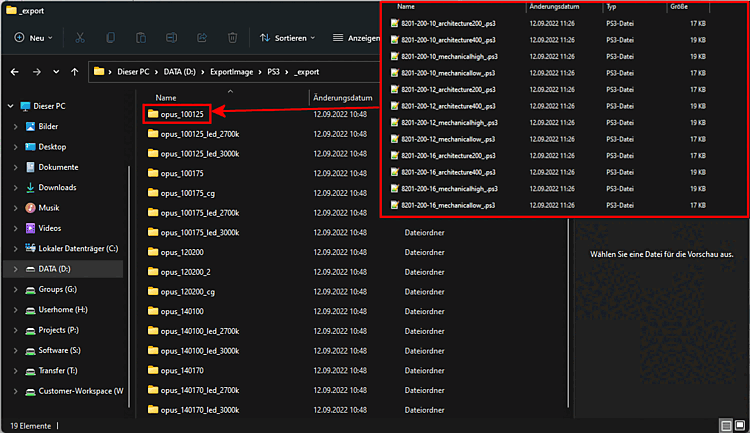

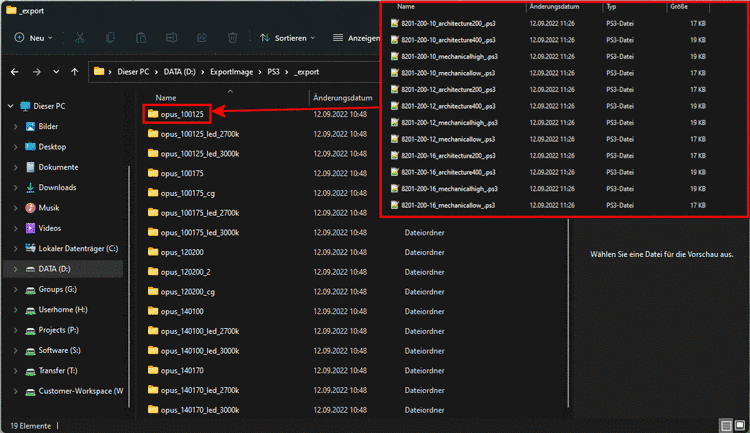

Following figure shows an example how this could look like:
