eClass: The ID is limited to a length of 2 characters, maximum 4 levels

Part: The key can be numeric or textual, any key length, any number of levels possible

Whole: The key can be numeric or textual, any key length, the complete key must be specified, any number of levels possible

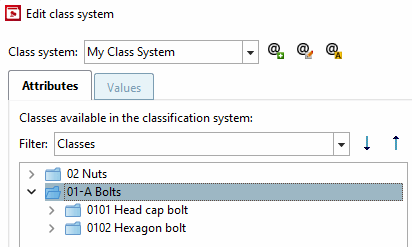

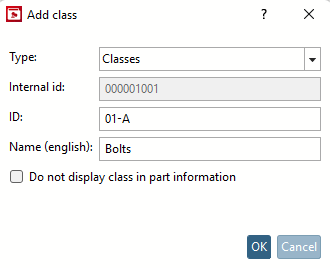

Note Changing a class ID does not affect the subclasses, which are free and independent of their parent element (which is displayed as a prefix). Change of the class ID: The exemplary figure shows a change of the ID from "01" to "01-A" Result in comparison between < V12.8 and >=V12.8: < V12.8: The subclasses have adopted the change to the class V12.8: The subclasses remain unchanged

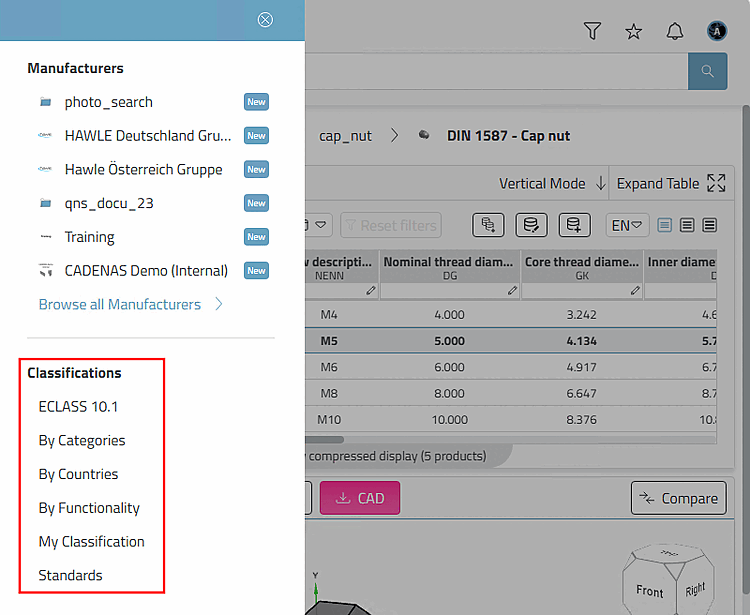

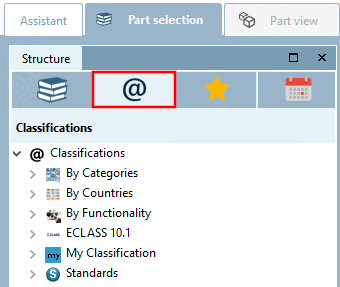

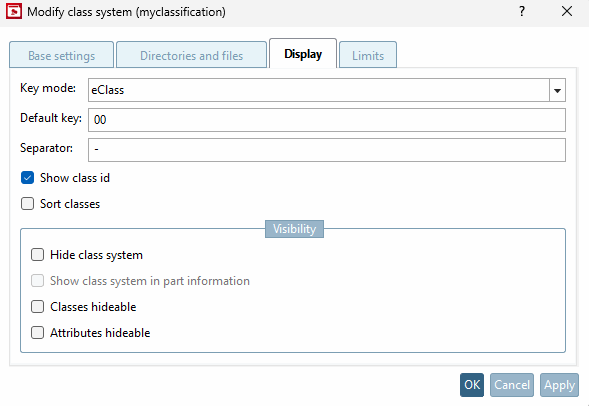

Class system hide [Hide class system]: Class systems can be hidden. The settings for this are $CADENAS_DATA/datasetup/classsystem.cfg in the file . Hidden class systems are used in 3Dfindit and PARTdataManager is no longer available for selection.

If the classification system is hidden, it is also hidden in the partial information by default. This can be changed using the Show class system in part information checkbox.

Show class system in part information: See Section 5.12.18.2, “Parts information ”.

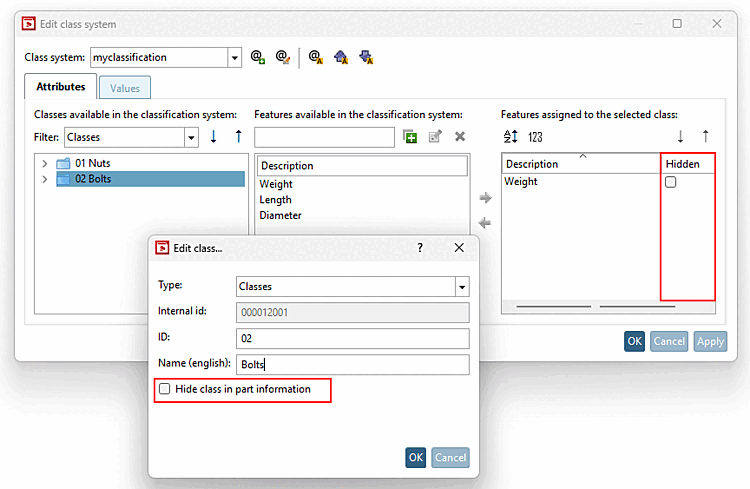

Classes can be hidden [Classes hideable]: With the two setting options Hide classes [Classes hideable] and Hide features [Attributes hideable], you can also hide individual elements. If these settings are active, an additional column with the checkbox for hiding is displayed in the features and in the dialog box Edit class... dialog box with another checkbox for hiding.

Linked variables that are hidden are $CADENAS_DATA/datasetup/classsystem/"class system name"/"class system name"_ml_"language".csv in the file .

Features can be hidden [Attributes hideable]: See above
