9.2. How do I obtain dimension drawings (technical views) of my selected CAD model?

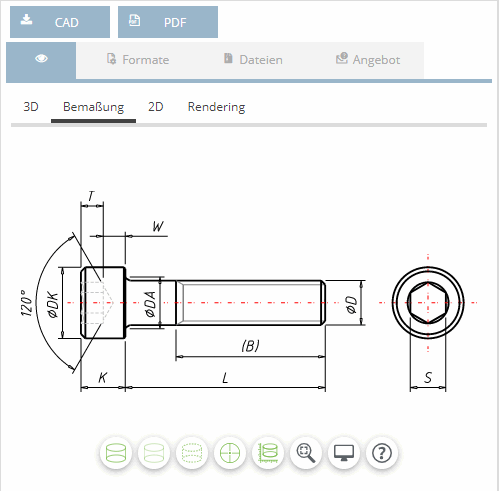

Click on Dimensioning [Dimension] to load the technical views.

If available, you can choose between different views in a list box.
