5.24.3.10.6. License Error

Is the required license available on the FLMserver?

You can find information about this on the dashboard:

https://servername.cadenas.internal:9022/webapps/appserverwatch/index.html

Licensed users: 3Dfindit -> Registerseite Common:

Licensing of 3Dfindit Users:

[Note]Note

  • The 3Dfindit licensing does not allow 1 user per default anymore (only V12 < SP4).

  • The 3Dfindit module runs only if 3Dfindit licenses are available. This is because even the 3Dfindit AppServer module requires a license; if one is not available, the module will not load, so no web page will be displayed.

  • If the following 1-user license key is stored on the FLMserver, only the first user to log in may do so (automatic login is also possible). All other users will then be unable to log in.

    Example for 1 user:

    CNS2009*PAPPSERVER*CLIENTS*3DFINDIT*1

  • A session can be started by logging in to the 3Dfindit server or to the clients. Each login via the web or from the CAD system is assigned a new session. A maximum of 5 active sessions are allowed per user. If a 6th session is started, the first session is terminated so that there are again 5 sessions.

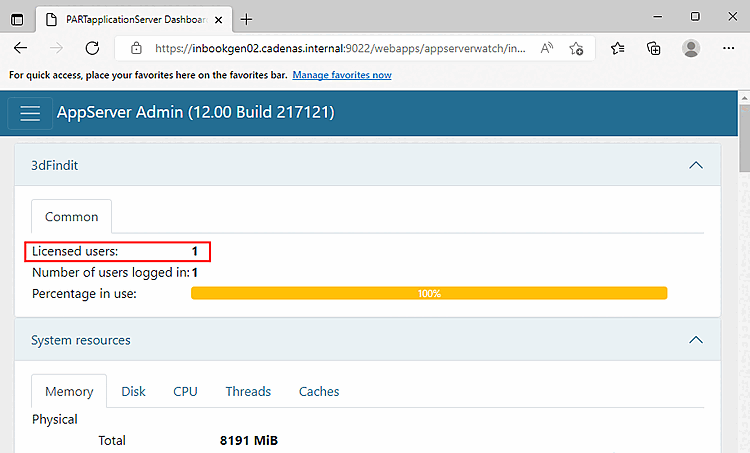

Tabbed page -> "Licensed users"

Tabbed page -> "Licensed users"

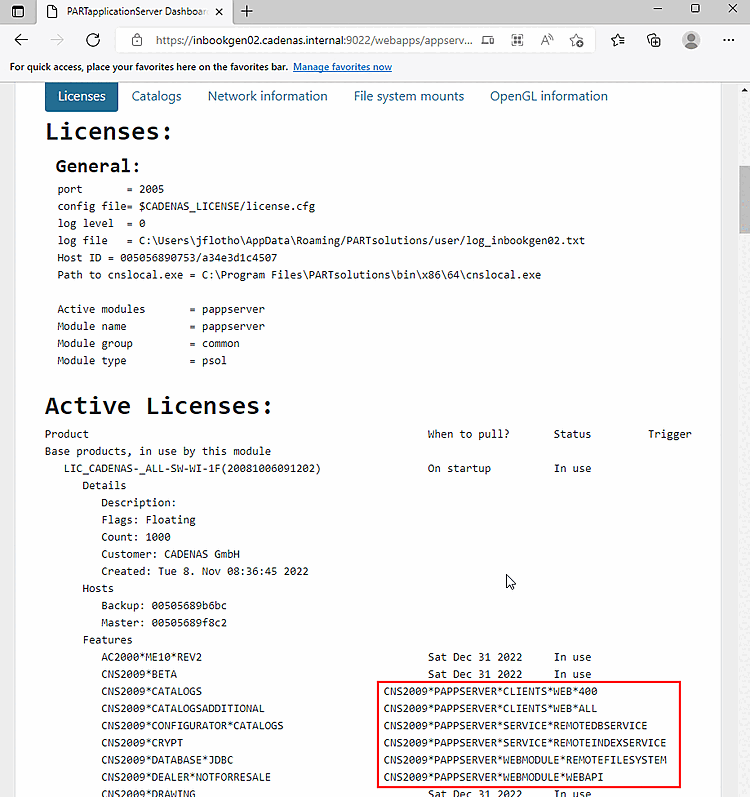

Licenses: Tabbed page Licenses

"Licenses" tabbed page

"Licenses" tabbed page
