1.5.1.3.2.4. Show current state of expressions

If mathematical expression are used in PARTdesigner for the calculation of values, the real value is displayed besides the expression.

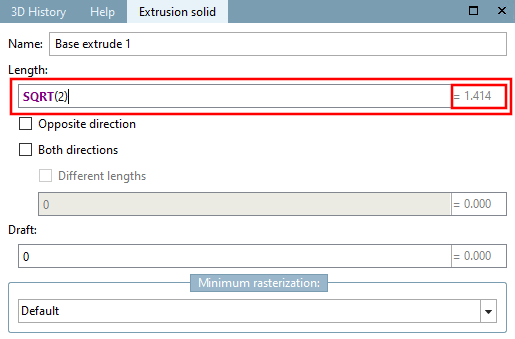

Example 1

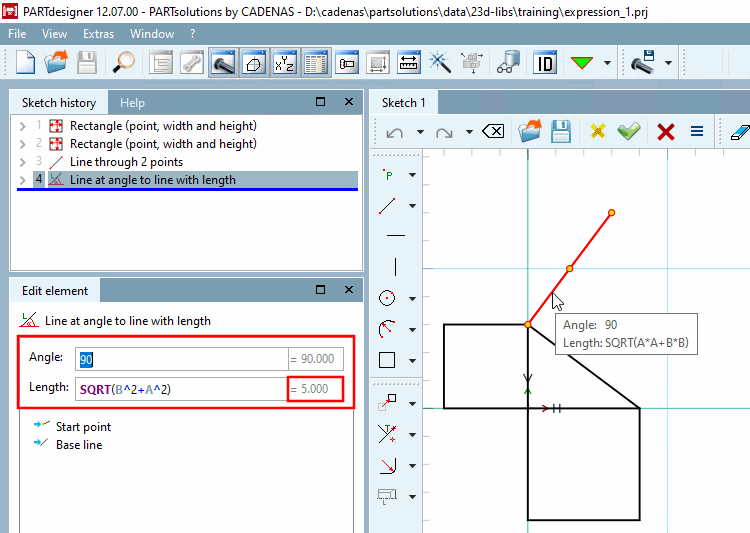

Example 2
