7.6.2.9.1.2. Example 2: Creating a sweep between several non-parallel layers

  1. Select 2 or more sketches (Ctrl or Shift key) that you want to combine into a sweep and click on the context menu command Create basic swe [Create sweep base] ep.

    [Note]Note

    Absolutely, select the sketches in the correct sequence.

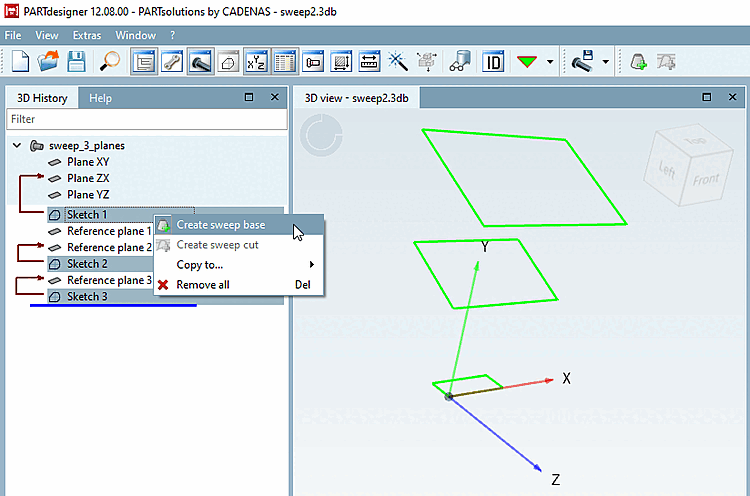

    Create basic history [Create sweep base]: Call

    Create basic history [Create sweep base]: Call

    -> The Basic History [Sweep base] docking window opens.

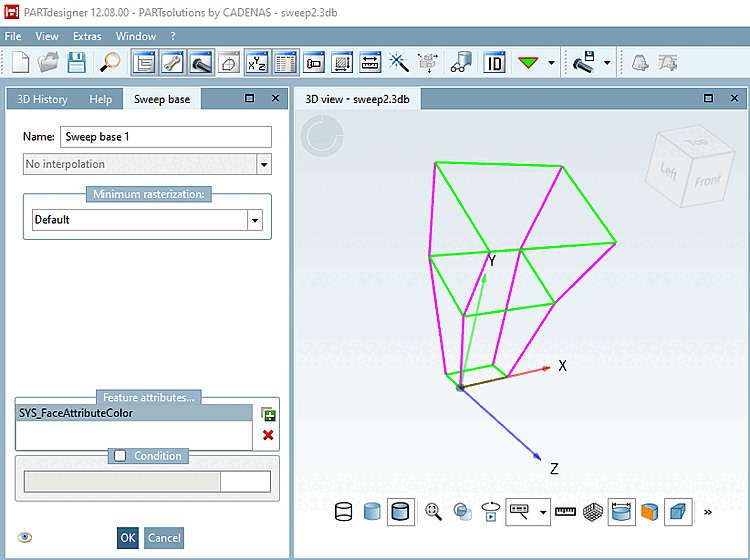

    Docking window "Basic history [Sweep base] " and 3D view

    Docking window "Basic history [Sweep base] " and 3D view

  2. Optionally, you have the possibility in the dialog area Feature attributes. [Feature attributes...].. dialog area using the Button to add colors or material.

  3. Enter the desired name and confirm with OK.

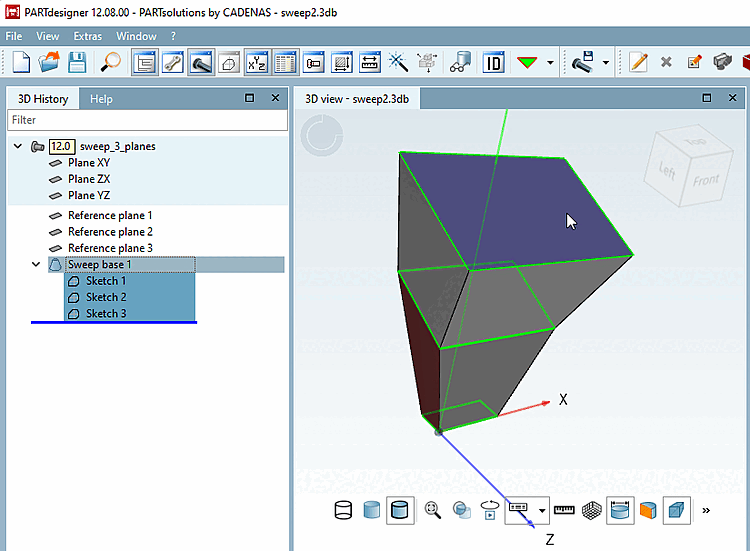

    Basic progression [Sweep base]: Result

    Basic progression [Sweep base]: Result
