4.7.3. Create and configure roles
4.7.3.2.  Roles: PDM" tab page
Prev  Next

4.7.3.2.  Roles: PDM" tab page

PARTadmin -> Category -> PARTsolutions -> ERP environment -> Roles

On the PDM tab page, you can set how the PDM ID information dialog should look.

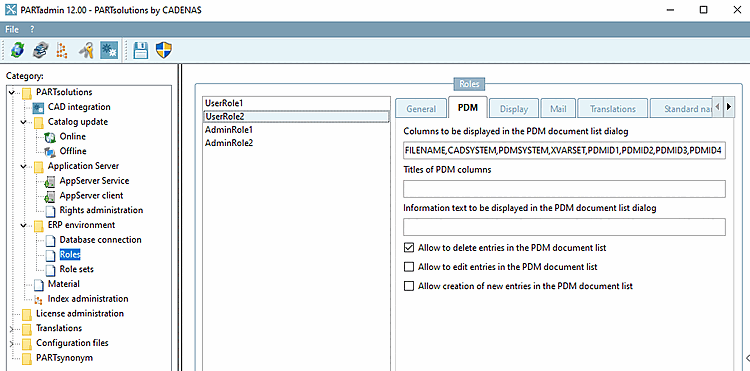

Tabbed page "PDM"

Tabbed page "PDM"

  • Columns to be displayed in the PDM document list [Columns to be displayed in the PDM document list dialog]

    An entry can be made optionally. Column names are entered separated by commas.

    If there is no entry, the following columns are displayed by default:

    PDMID1,PDMID2,PDMID3,PDMID4,PDMID5,XVARSET,CADSYSTEM,PDMSYSTEM,GEOFEATURES,NBDEFAULTLANG

  • Information text for the PDM document list [Information text to be displayed in the PDM document list dialog]

    An entry can be made optionally.

  • Allow deletion of lines in the PDM document list [Allow user to delete rows in the PDM document list dialog]

    Delete button visible/hidden

    If the checkbox is deactivated, the Delete button is hidden.

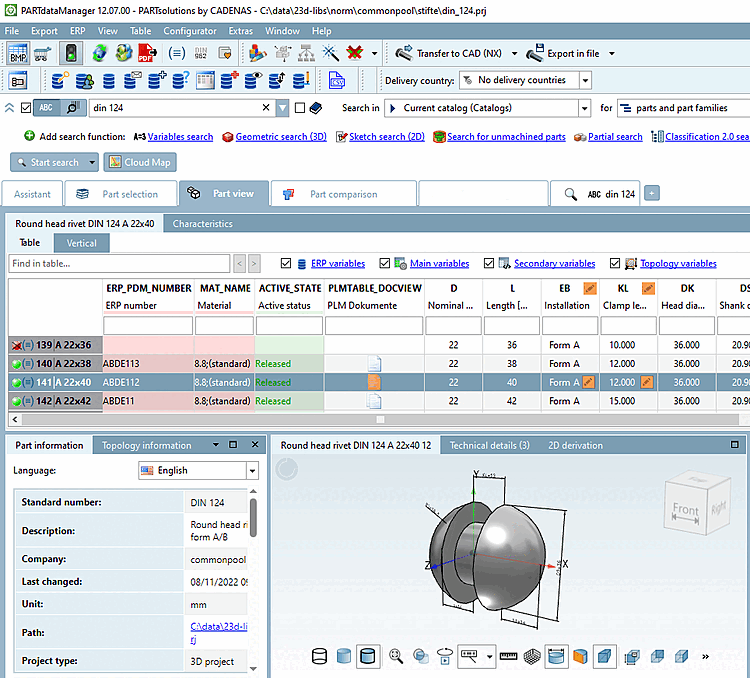

Details can be found under Section 3.2.9, “Show CAD documents (PDM-ID) in 3Dfindit / PARTdataManager ”.
