7.8.12.2. Coloring in the feature algorithm window

You can create or edit the algorithm in the Characteristics algorithm [Attribute algorithm] dialog box. To give you a better overview, the texts have different colors, similar to a development environment.

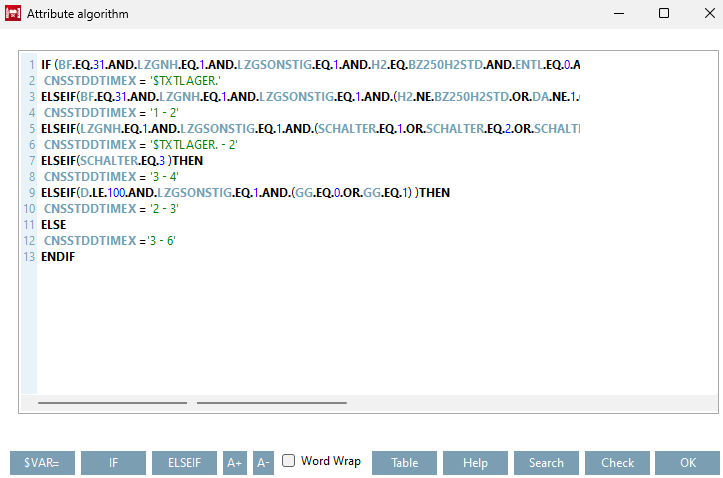

Feature algorithm [Attribute algorithm] dialog box

Feature algorithm [Attribute algorithm] dialog box

The following colors are available:

  • Black: Statements and operators

  • Light blue: Variables recognized by the system

  • Dark blue: Variables not recognized by the system

  • Green: Text between two quotation marks
