12.2.2.6. Transfer special derivations or technical views to CAD system

If specified by the manufacturer, additional derivations (in the example below "Special5") can also be transferred to the CAD system in the Select view to be transferred. [Choose view to pass...].. dialog box, additional derivations (in the example below "Special5") can also be transferred to the CAD system.

In addition, the technical views are displayed in the dialog and can also be transferred to the CAD system.

If you want to export special derivations to the CAD system, proceed as follows:

  1. Call up PARTdataManager in CAD via PARTsolutions Menu, Insert 2D.

  2. After selecting the desired component, click on Transfer to CAD [Export to CAD].

    [Note]Note

    Please note the setting options on Section 12.1.11, “Register page "Transfer to CAD " ”.

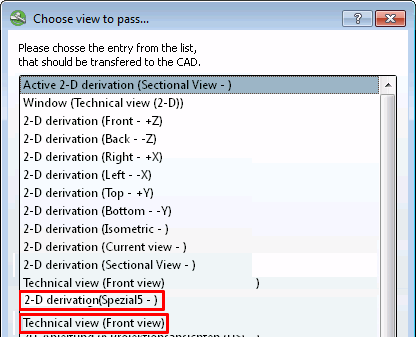

  3. -> The Select view to be transferred [Choose view to pass...] dialog box opens.... [Choose view to pass...]

  4. Select the special desired view here.

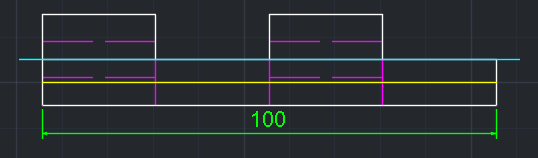

    Derivation (Spezial5 - )

    Derivation (Spezial5 - )

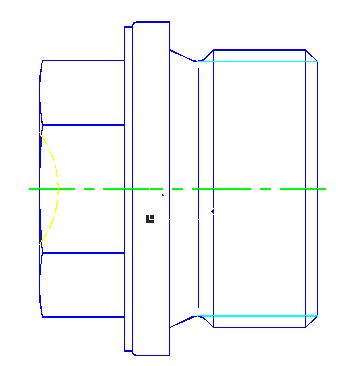

    Technical view (Front view)

    Technical view (Front view)

  5. Confirm in the dialog box with Transfer [Commit].

  6. -> The special derivation or view is transferred to the CAD system.
