7.7.1. Context menu commands at single parts
7.7.1.1. Call outside a component
Prev  Next

7.7.1.1. Call outside a component

If you right-click on the free area in the 3D view, a non-part-related context menu appears.

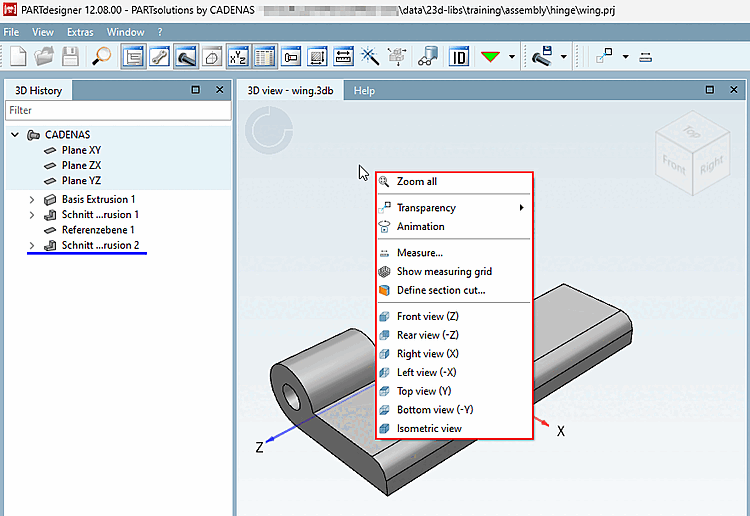

Docking window "3D view [3D view] " Context menu outside the component

Docking window "3D view [3D view] " Context menu outside the component

  • Catch everything [Zoom all]

    The component is displayed centered in the 3D view.

  • Transparency

    Settings for the transparent display of the component.

  • Animation

    Shows the component in a rotating animation.

  • Fairs [Measure]

    Opens the measuring tool.

  • Display measuring grid [Show measuring grid]

    Shows the external dimensions in the 3D view.

  • Define cutting plane... [Define section cut...]

    A sectional view can be displayed, which can be drawn through the component as required using a coordinate system.

  • Views

    The component can be displayed from the front view [Front view], rear view [Rear view], right view [Right view], left view [Left view], top view [Top view] or bottom view [Bottom view].

  • Isometric view

    Shows the component in the isometric view.
