By these fields you are able to create an external Bill of Material.

Command

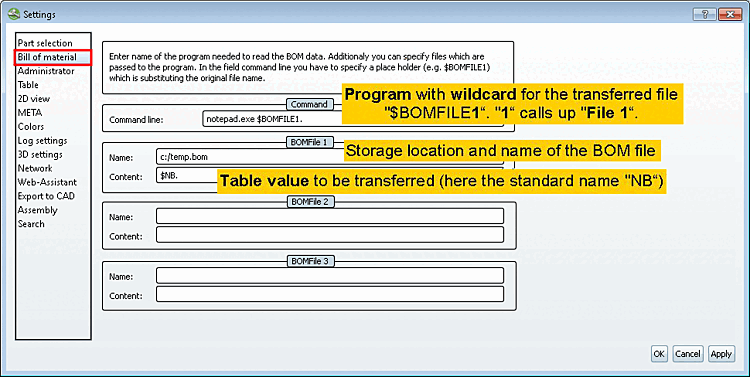

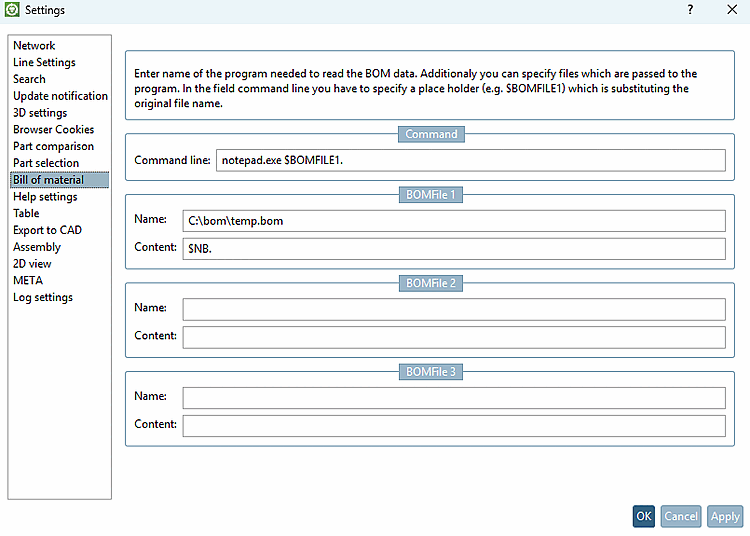

Command line [Command line]: Here you specify the program (in the example "notepad.exe") that is to be started as the "platform" for your parts list. Use the placeholder "$BOMFILE 1 " to address file 1 [BOMFile 1], "$BOMFILE 2 " to address file 2 [BOMFile 2] and so on.

File 1 [BOMFile 1], File 2 [BOMFile 2] or File 3 [BOMFile 3]: Enter the name of the file into which the content [Content] defined below (by the set program) is to be read. In the example, this is the content of the variable column standard designation "NB".

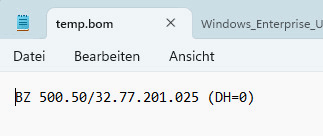

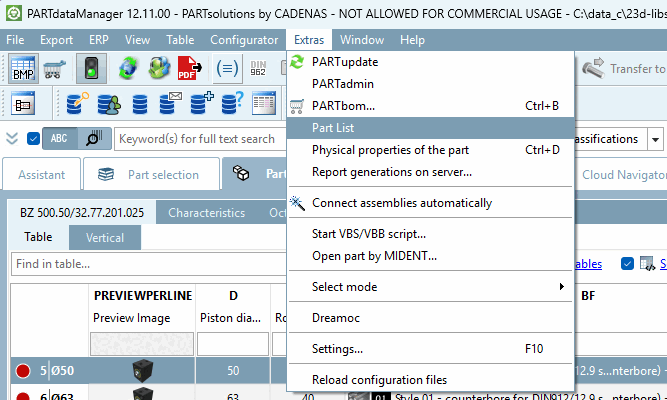

To display the content, select Extras, Parts list [Bill of material] --> The program is started and the content is entered.
