The following applies to Vault 2022 & 2023

(Tests conducted in BINwin10x64_EN_VAULT_2023 - 10.13.18.44)

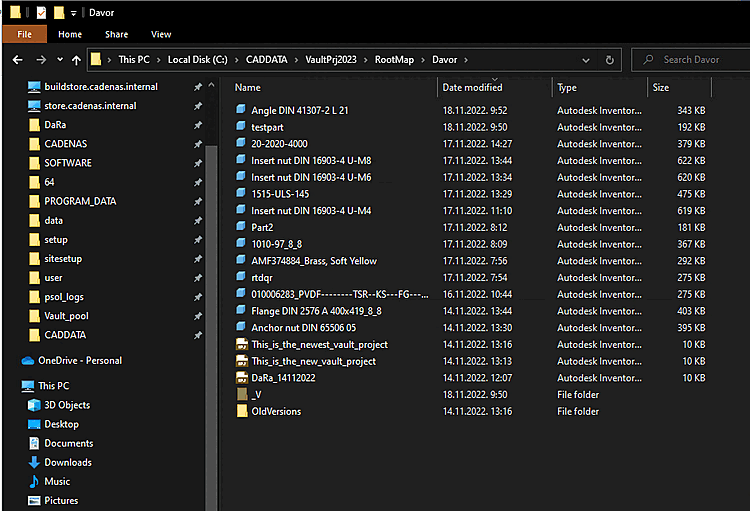

Inventor project files are located not only in the main directory ("C:\CADDATA\VaultPrj2023"), but also in subfolders.

Login from Inventor to Vault and/or automatic login to Vault from Inventor:

After the CAD model is generated, the Vault save dialog box appears.

As a result, the CAD file is not saved in the correct pool path, and the Vault API cannot upload it.

Create a new Inventor environment:

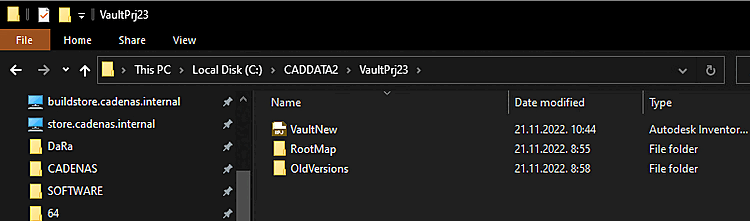

New directory "C:\CADDATA2\VaultPrj23" containing only one project, "VaultNew" (explained below).

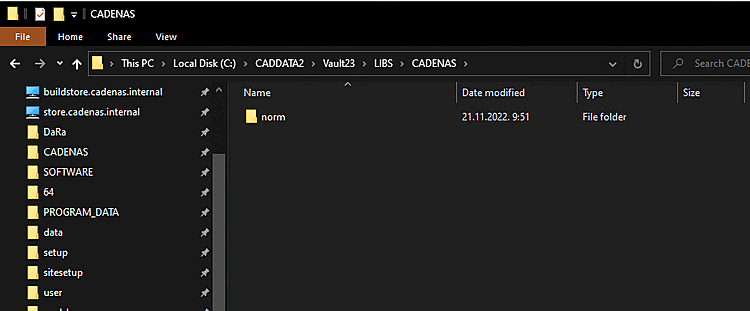

New Directory "C:\CADDATA2\Vault23\LIBS\CADENAS" for the CADENAS pool path.

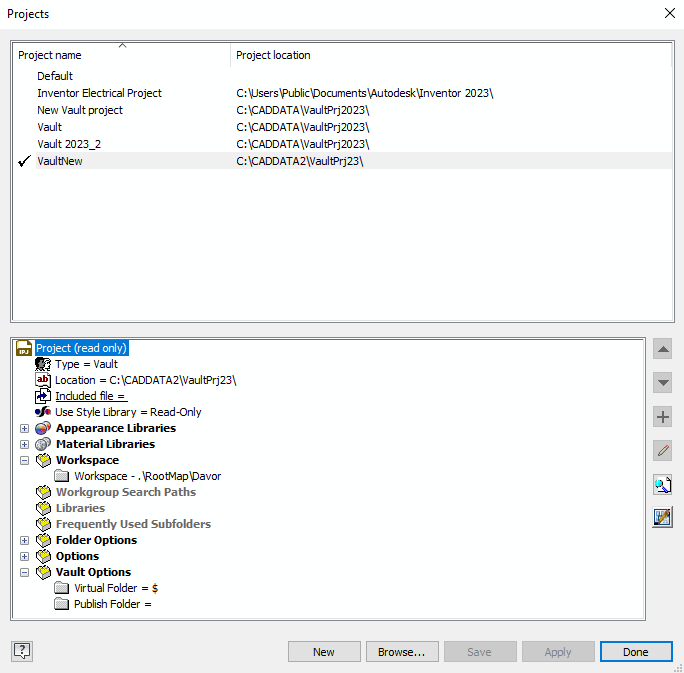

Create a new project for this environment.

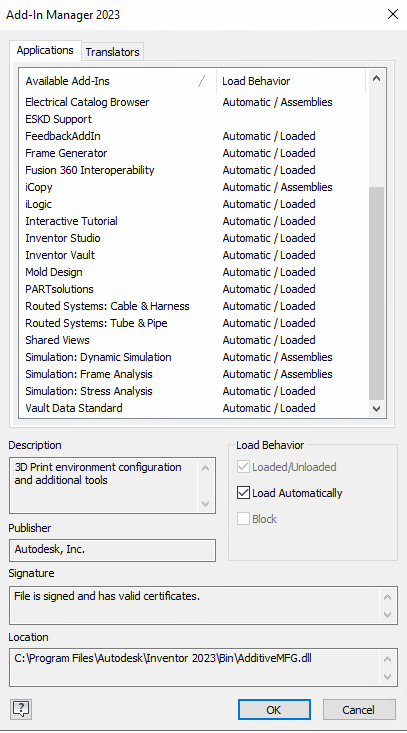

The following add-ins are enabled: 3Dfindit, Inventor Vault, Vault Data Standard.

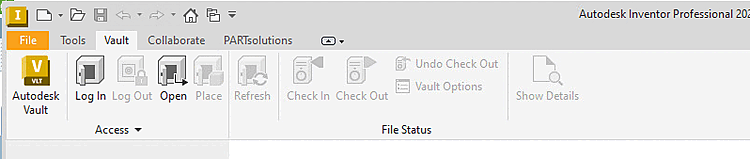

Disable automatic sign-in to Vault from Inventor.

Do not log out of Inventor from Vault.

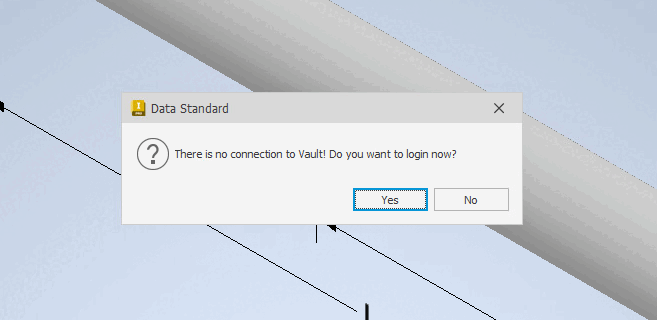

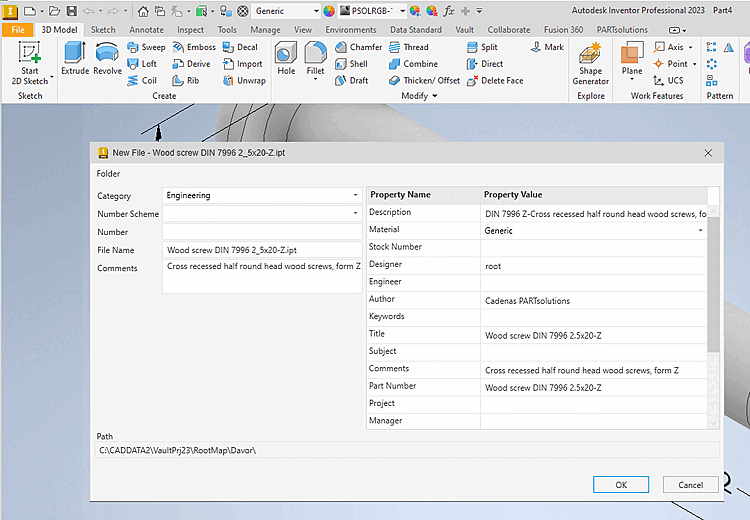

The first time you export, the Data Standard dialog box appears.

Click "No"; the API is already connected to Vault.

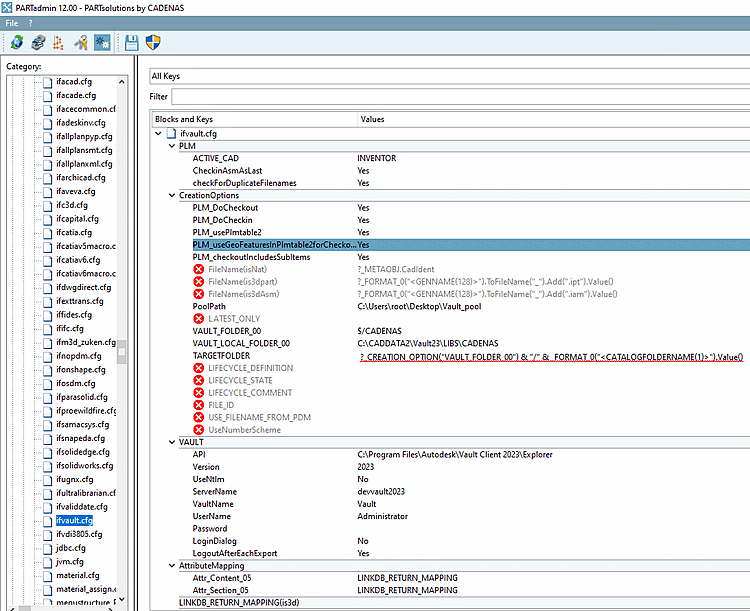

PoolPath=C:\Users\root\Desktop\Vault_pool

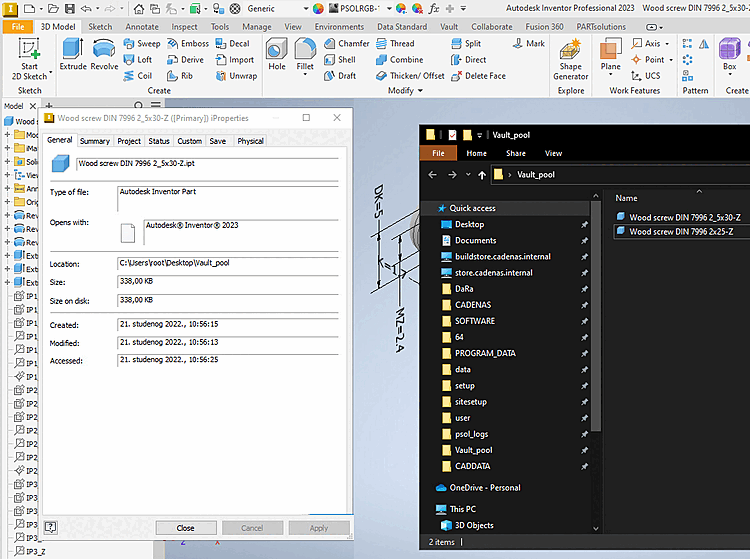

After exporting, the CAD file is located in the local pool path.

The iProperties of the export.

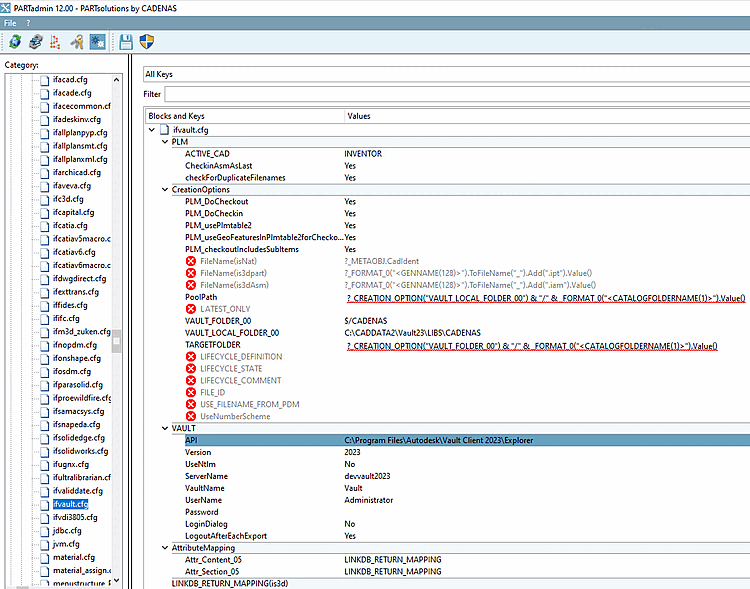

PoolPath=?_CREATION_OPTION("VAULT_LOCAL_FOLDER_00") & "/" & _FORMAT_0("<CATALOGFOLDERNAME(1)>")
 .Value()

VAULT_LOCAL_FOLDER_00=C:\CADDATA2\Vault23\LIBS\CADENAS

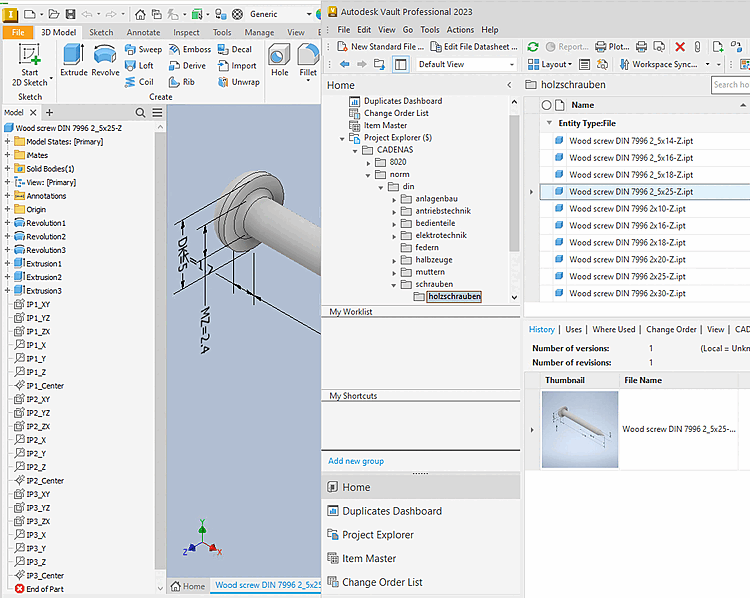

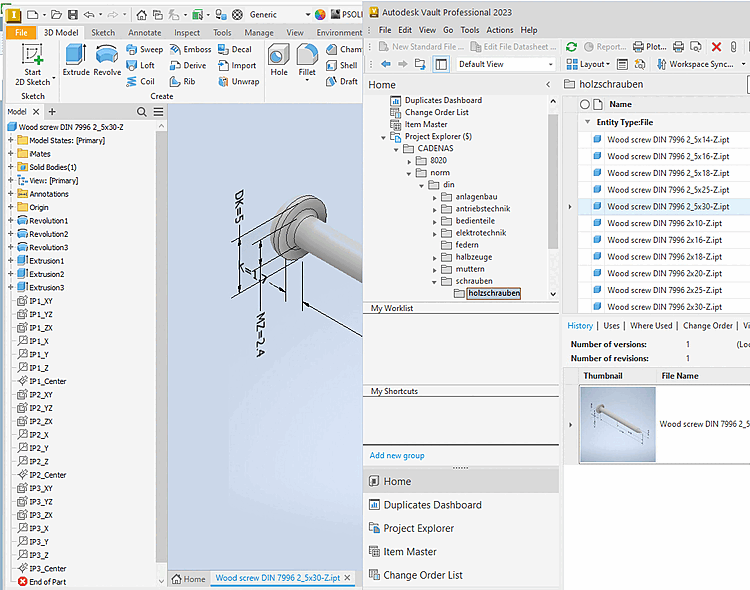

Successfully exported to Vault

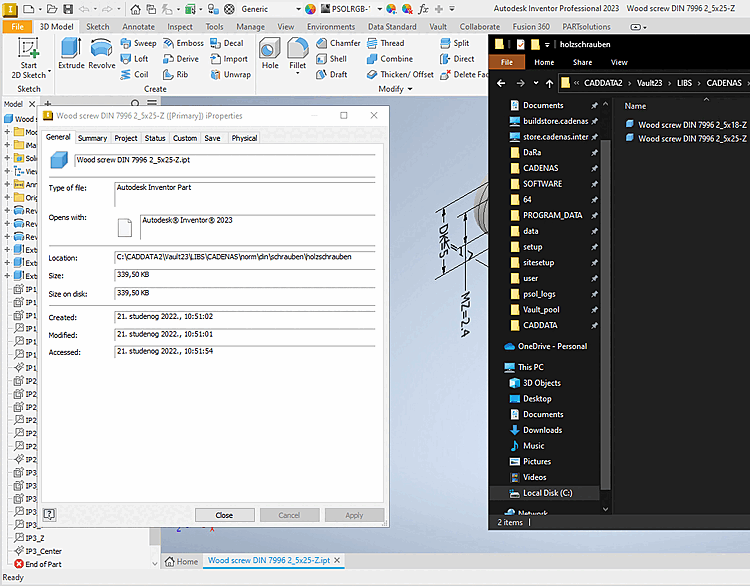

Export iProperties and the CAD file in the pool path

Vault API functionality: WORKSFORME

To avoid the "Save" dialog box for the Vault plug-in and the Vault Data Standard plug-in, a new issue is created.

Customer environments may vary. Therefore, the export must work with virtually all possible settings.

The Inventor+ Vault environment in the VM BINwin10x64_EN_VAULT_2023 - 10.13.18.44 is ready for testing.

Please do not change any settings in Inventor or the Vault client!
