5.5.6. Step 6: Test the new project in PARTdataManager / 3Dfindit

  1. Select the project file „part_xy.prj“.

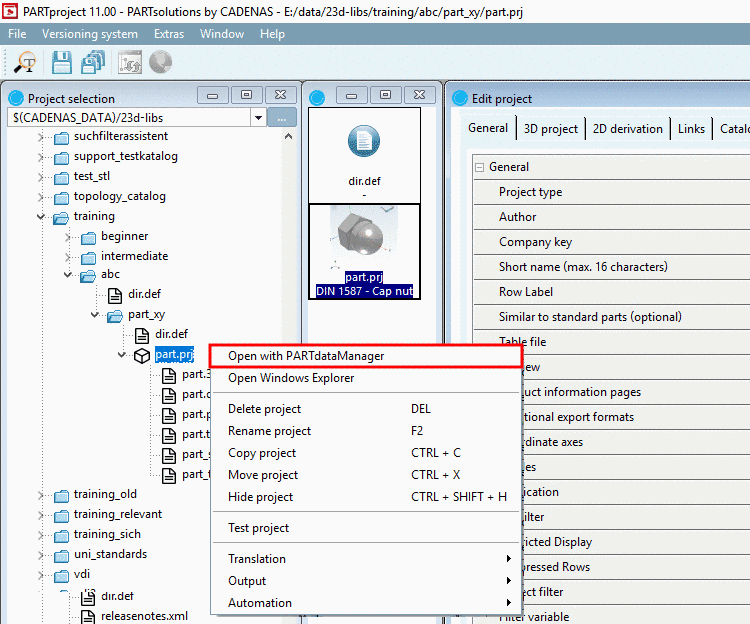

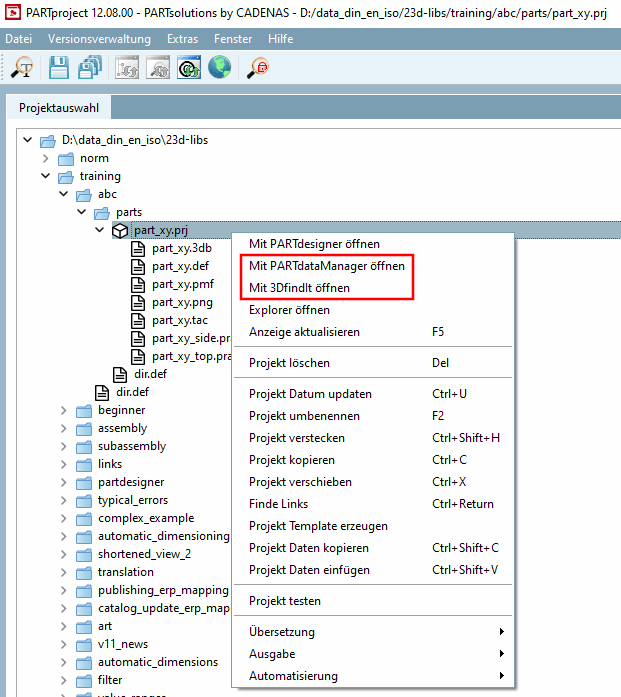

  2. Click the context menu command Open with PARTdataManager [Open with PARTdataManager] or Open with 3DfindIt.

    Open with PARTdataManager: [Open with PARTdataManager]

    -> PARTdataManager is started and the part is opened in the part view [Part view].

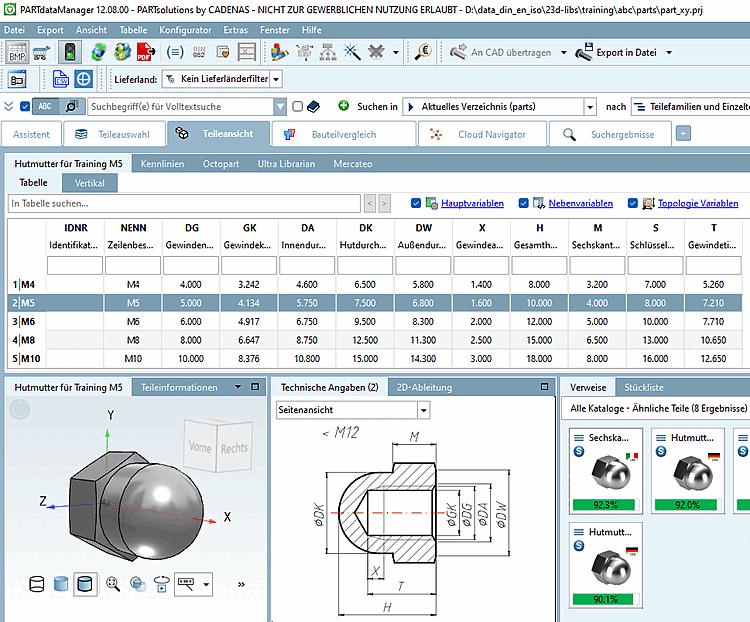

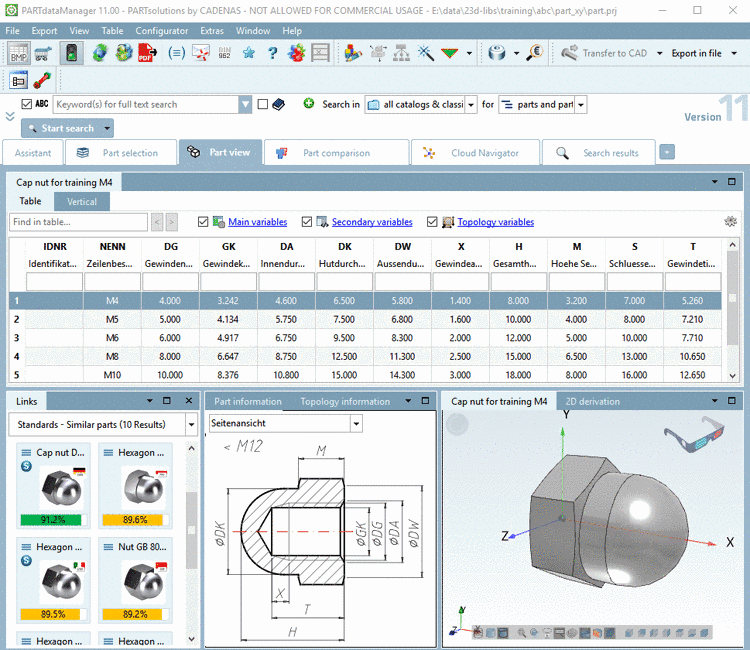

    PARTdataManager Parts view [Part view]

    PARTdataManager Parts view [Part view]

    Open with 3DfindIt:

    -> 3Dfindit is started and the component is initially opened with table and 3D view.

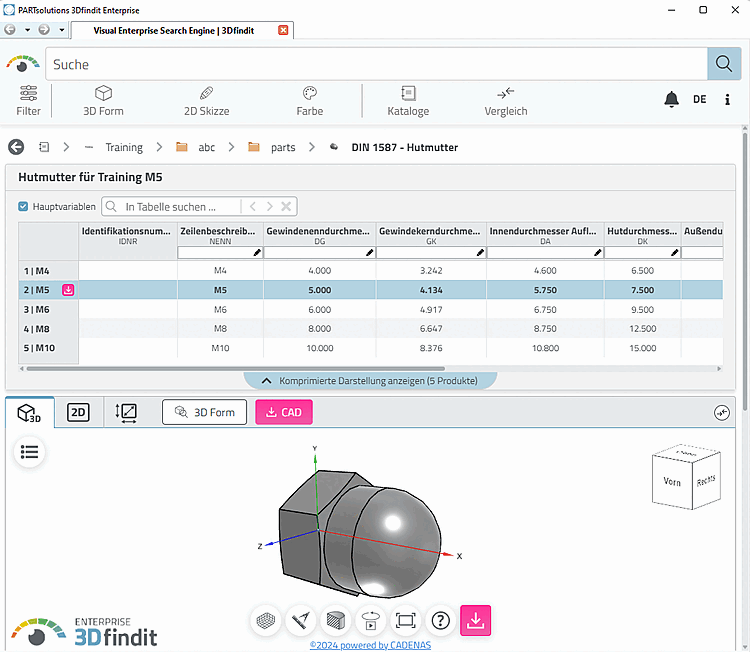

    3Dfindit parts view [Part view]

    3Dfindit parts view [Part view]
