5.12.11.20.1. Accessory parts in eClass Advanced
5.12.11.20.1.1. Set links to accessory parts in PARTsolutions

The handling of accessory parts in eClass Advanced provides the basic concepts for the CNS classification system. Because of this we will have a detailed look on it.

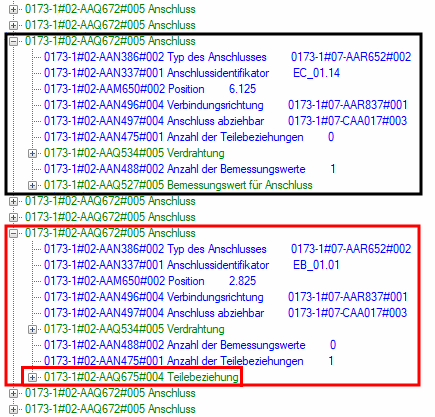

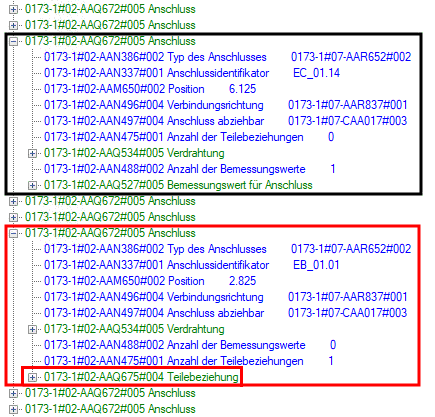

Typical example for accessories in eClass Advanced: The first marked connection (black) has no potential accessories. This is in contrast to the second connection (red), whose accessories are defined in the "Subfolder AAQ675" [Part relation ].

Typical example for accessories in eClass Advanced: The first marked connection (black) has no potential accessories. This is in contrast to the second connection (red), whose accessories are defined in the "Subfolder AAQ675" [Part relation ].

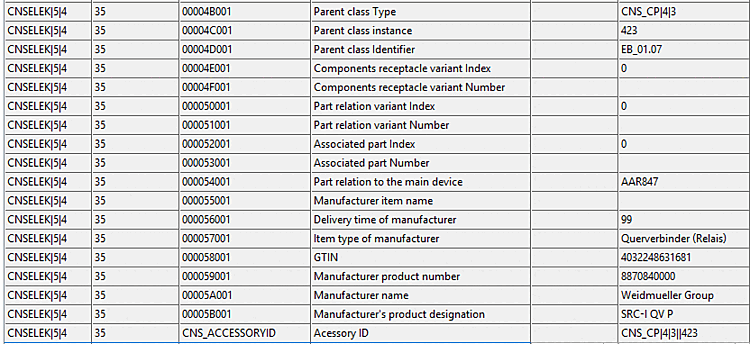

Representation of the situation shown above on the CNS classification side. The data in the class "CNSELEK|5|4" contains both the eClass data (see above) and the "bookkeeping", which links the eClass tree structure with the usual PSOL accessory logic (see below).

Representation of the situation shown above on the CNS classification side. The data in the class "CNSELEK|5|4" contains both the eClass data (see above) and the "bookkeeping", which links the eClass tree structure with the usual PSOL accessory logic (see below).

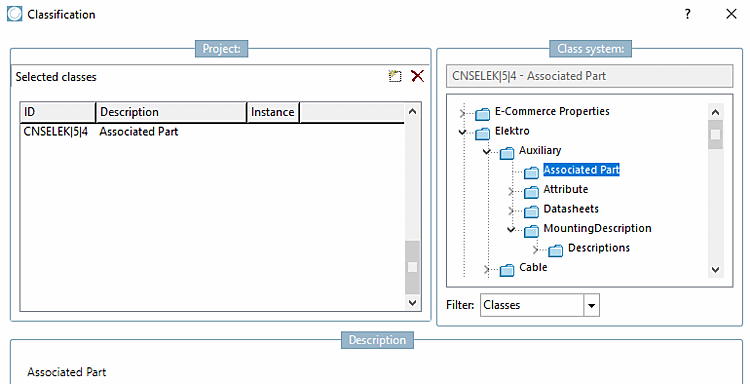

Classification dialog box -> Class "CNSELEK|5|4" - Description "Associated Part"

Classification dialog box -> Class "CNSELEK|5|4" - Description "Associated Part"
