7.6.2.6.1.3.  Length

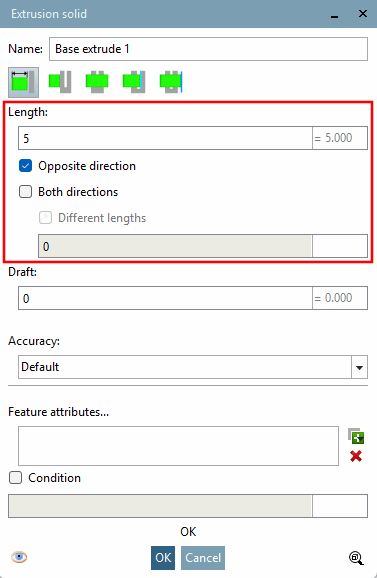

  • In the Length field, you define the extent of the 2D object.

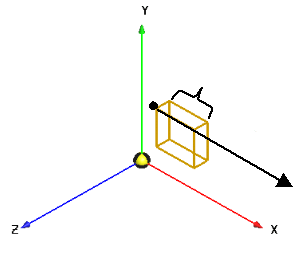

    Length of extrusion

    Length of extrusion

  • Opposite direction extrusion is carried out in the opposite direction.

    Both directions: The extrusion is performed in both directions.

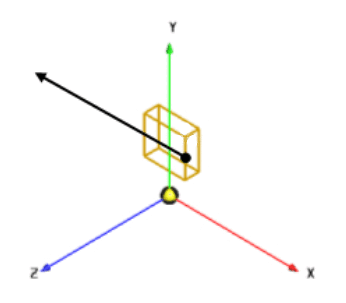

    Black vector = direction: against surface normal [Against surface normal]

    Black vector = direction: against surface normal [Against surface normal]

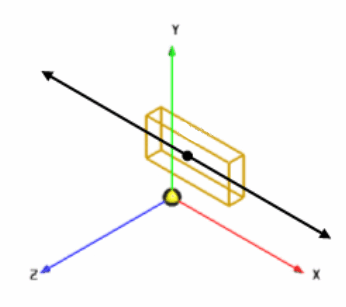

    Black vector = direction: both directions [Both directions]

    Black vector = direction: both directions [Both directions]

  • Different Lengths [Different lengths]: With this option, the 2D sketch is also extruded in both directions, but with the ability to define different extrusion lengths.

    Enter the length perpendicular to the surface normal in the field below " Various Lengths [Different lengths] " (here, "30").
