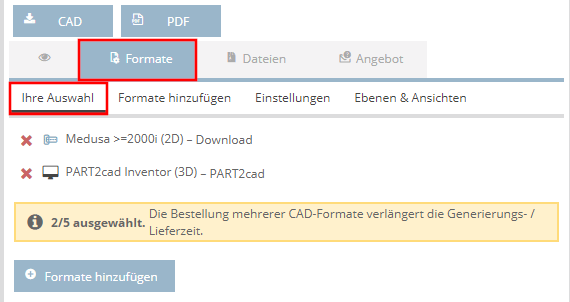

Before you can generate and then download parts, you must have selected at least 1 format from a maximum of 5 possible. If you have not yet made a selection, the corresponding dialog area opens automatically when you click on (or ). Otherwise, you can open the area at any time via the -> buttons.

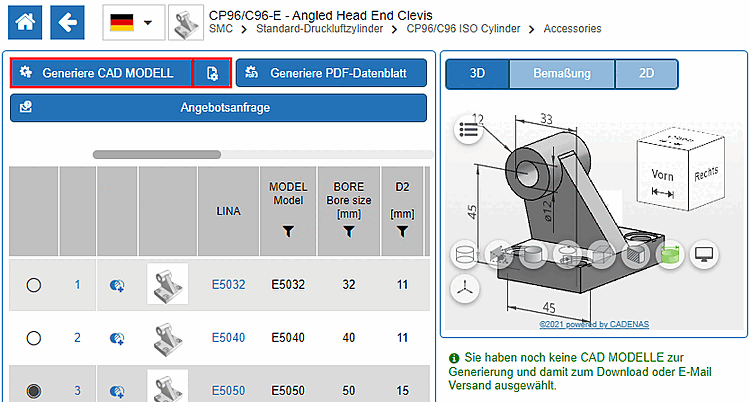

The buttons for Generate CAD MODEL or Format settings are displayed on the right-hand side of OEM portals, and may also be displayed above the table depending on the portal (some supplier portals). See also ???.

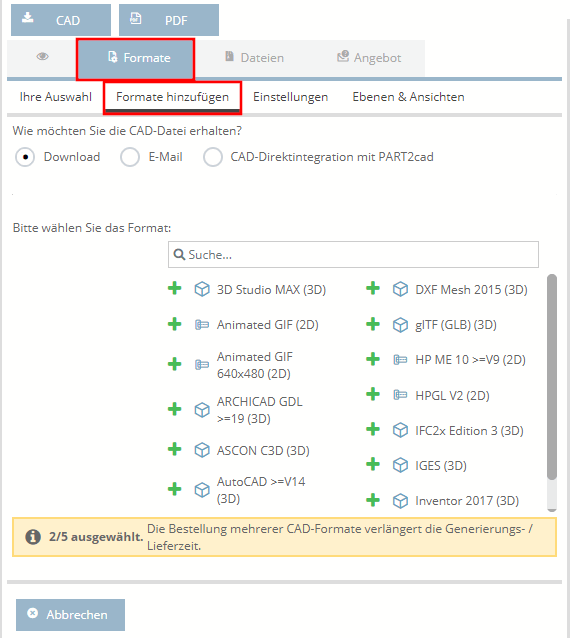

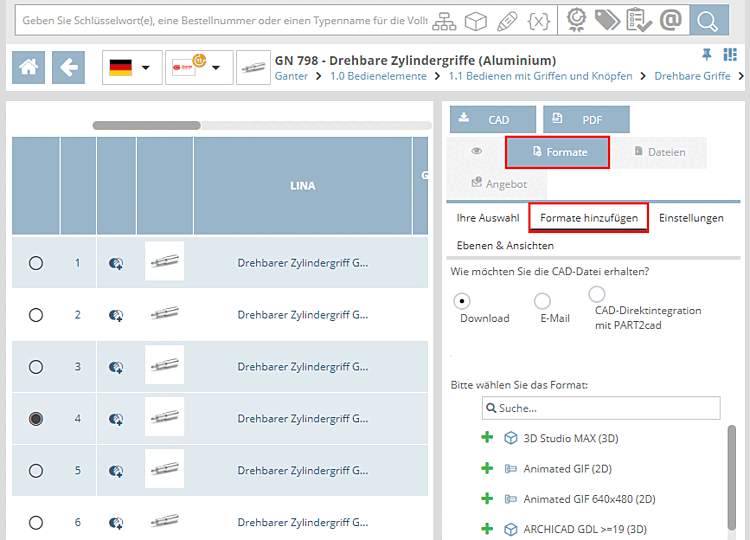

In the Add formats dialog area, select the desired formats separately for the provision methods Download, Email and PART2cad. You can find more information on the various methods at ???.[123]

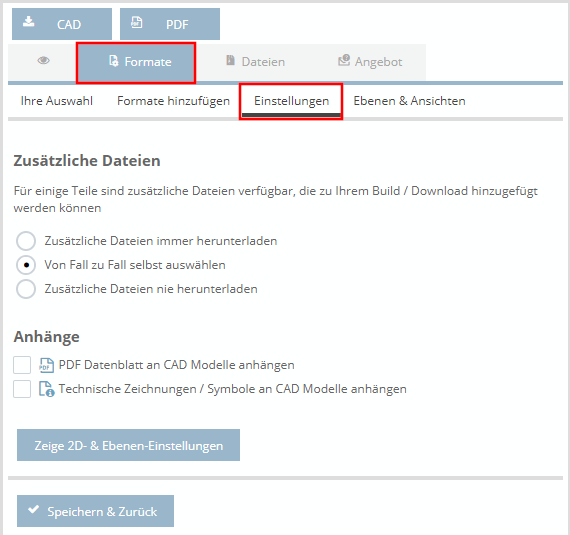

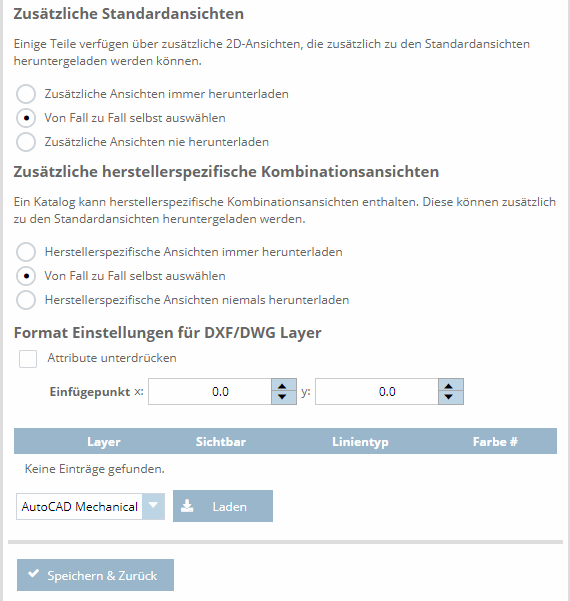

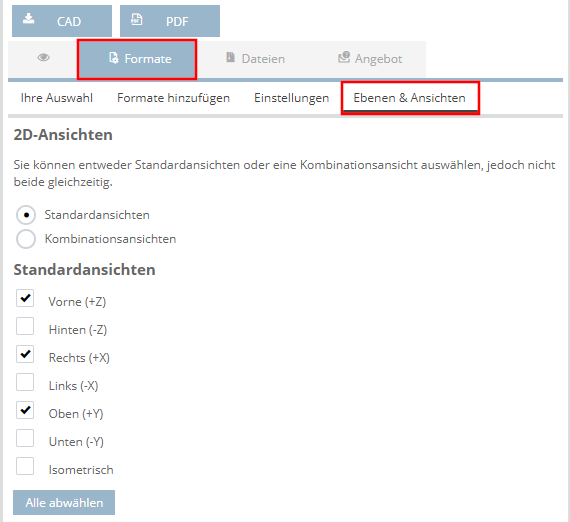

The following subpages can be found below the Formats Tabbed page:
[123] The following formats for 3D CAD models and 2D CAD models are available (depending on the license): 3D Studio MAX, Animated GIF, ArchiCAD, ASCON C3D, AutoCAD, AVEVA E3D Autodesk Revit, Aveva PDMS / Marine, BeckerCAD, Bentley AECOsim, BMP, Caddy++, C3D KOMPAS, Caddy++ SAT-V4.2, Capital Library XML, Cadkey CDL, Catia (Macro), Catia V5, , Catia IUA V4, , CoCreate Modeling, COLLADA, Creo Elements/Direct Modeling, Creo Elements/Pro, Creo Parametric, DWF ASCII5.5, DWF Binary, DWF Compressed, ASCII, DWF V6, ASCII DWF V6 UNCOMPRESSED, DWG AUTOCAD, DXF AUTOCAD, DXF Mesh, gITF (GLB), Google Sketchup, HP ME 10, HPGL, IFC2x Edition 3, IGES, Inventor, JPEG, JT, KOMPAS, Lignikon, Mechanical Desktop, Medusa, MegaCAD, Metafile 2D (PS2) V2, Metafile 2D V1, Metafile 3D, MI, Microstation, Nupas / Cadmatic, NX, OBJ (WaveFront), One Space Modeling, Parasolid, PARTjava, PART2cad Creo Elements/Direct Modeling (CoCreate Modeling), PART2cad AutoCAD, PART2cad CATIA, PART2cad Creo Parametric (Pro/ENGINEER Wildfire), PART2cad Inventor, PART2cad Solid Edge, PART2cad SolidWorks, PART2cad Unigraphics NX, PDF 3D, PDF Datasheet, Pro/ENGINEER Wildfire, PRO-Desktop, RENGA, SAT, Smartplant, Solid Edge, SolidWorks, STEP, STL, Strakon, SVG, Tekla, Think3, TIFF, Tribon M3, Trimble Sketchup, VDI, VisiCad, VRML, VX (Varimetrix), WebGL HTML
