In the following is described how you can execute a geometric search for any part in your CAD system. The parts to compare can be from standard, supplier or own part catalogs.

The geometric search (3D) [Geometric search (3D)] is suitable for text-independent searches, also as a supplement to the full text search, especially for searching in the own parts pool, for unclassified parts or parts that are not recorded in ERP/PDM. Thanks to its precision, you can find the proverbial needle in a haystack.

Click In the 3dfindit menu (or in the toolbar) of your CAD system on Geometric Search [Execute Geometric Search] .

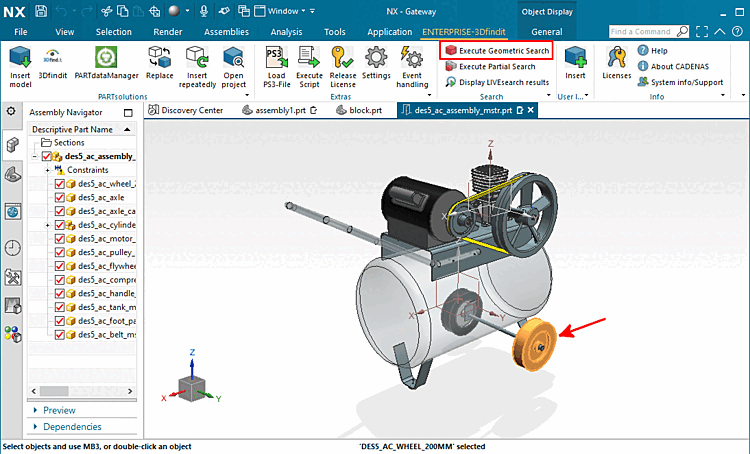

Call "Perform geometric search [Execute Geometric Search]" as an example in NX

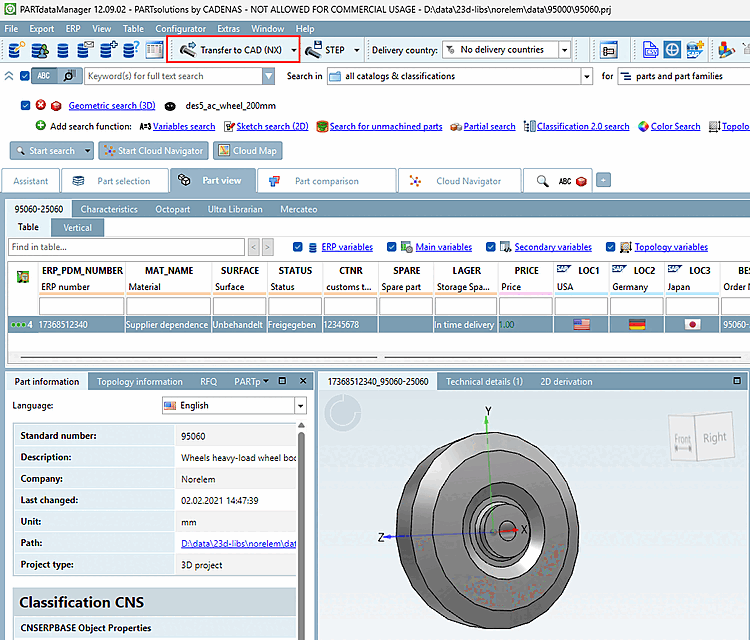

-> If the target is unique (3Dfindit or PARTdataManager ) and the search part is unique, the search is executed immediately and the focus goes to 3Dfindit or PARTdataManager.

If it is an assembly group, a dialog appears:

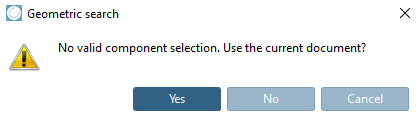

"No valid component selection. Use the current document?

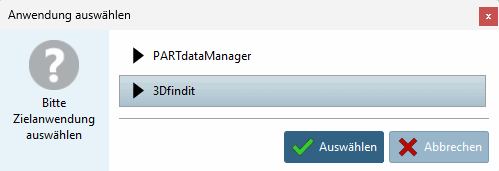

Select application [Choose Application]

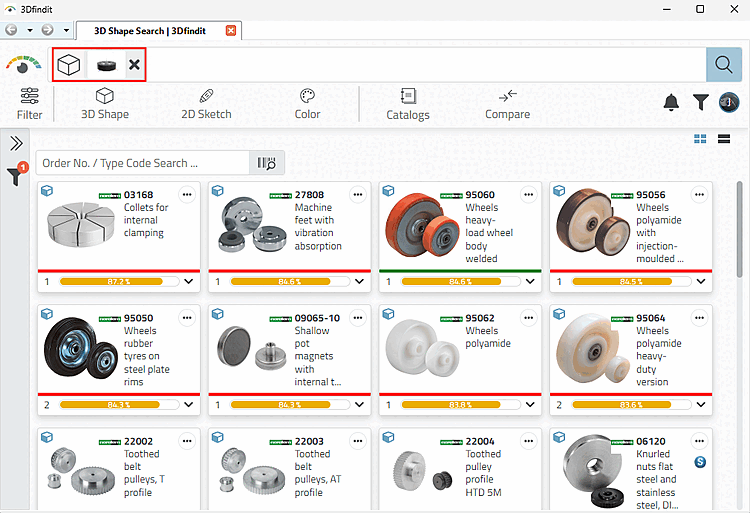

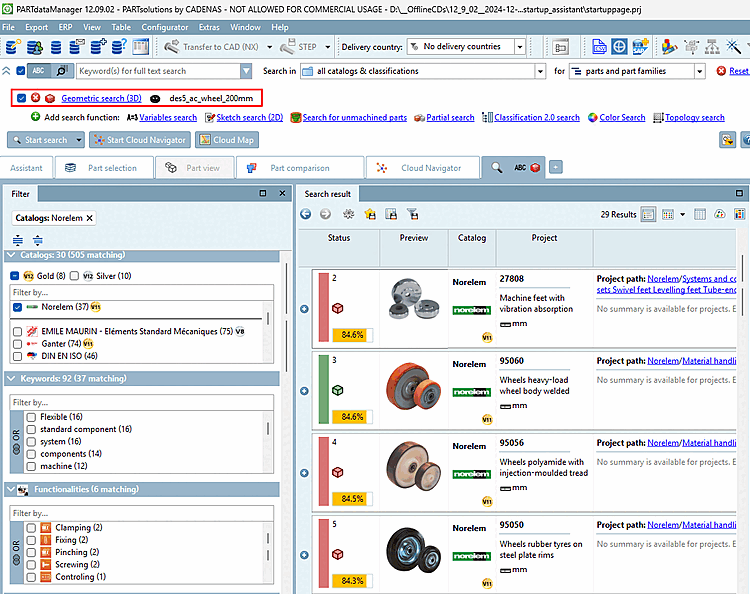

-> Immediately after selection and confirmation, the focus moves to the target application, the search is executed and the results are displayed.
