1.1.1.3.2. PARTproject 1.1.1.3.2.1. Apply suggested classes and features (from Class2Class mapping) in one go |  |
| Prev | Next |
Use case: There are Class2Class mappings (see Section 5.12.15, “
Automatic Class Mapping: Edit...
” in eCATALOG 3Dfindit.) for the selected in the Settings docking window, on the Classification tab page, in the list box
Classification. After clicking on the button, show
suggestions [Show suggestions]

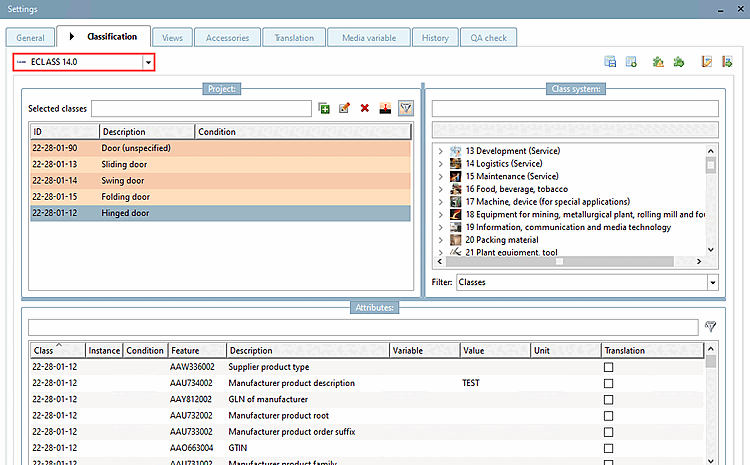

, they are displayed in orange in the Project and Traits [Attributes] dialog boxes.
Until now,
each characteristic row can be selected individually and returned individually
can be adopted. With the new feature
All Attributes
this [Apply all attributes] is now possible for all characteristics of the selected class
(in the example above "Hinged door") in one go.
In PARTproject > Extras menu > Automatic class mapping: Edit... [Automatic class mapping: edit...] > dialog window Edit automatic class mapping [Edit Automatic Class Mapping] > Tabbed page Suggested elements [Suggested items] there are mappings to the desired classification (in the following exemplary figure from eclass 13.0 to eclass 14.0).

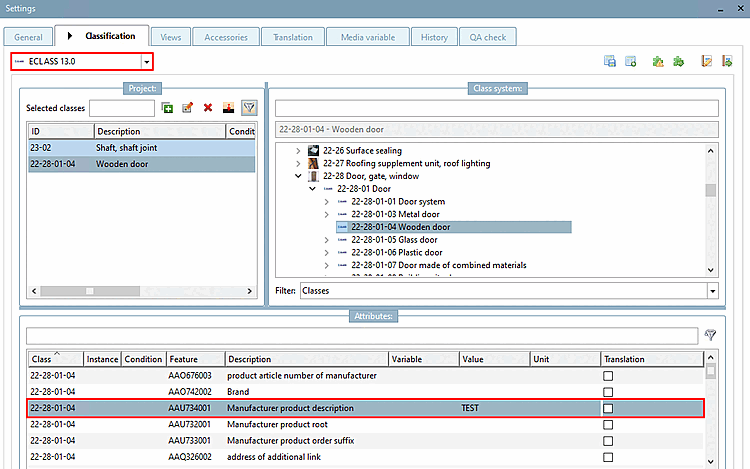

On the Classification Tabbed page, select "ECLASS 13.0" in the list box.
-> Class "22-28-01-04" is assigned to the selected project.
Now select "ECLASS 14.0" in the list field.
-> Mapped classes and features are displayed in orange.
In the Project dialog area, select a class to which you want to transfer the displayed characteristics (here in the example "22-28-01-12 Hinged door").

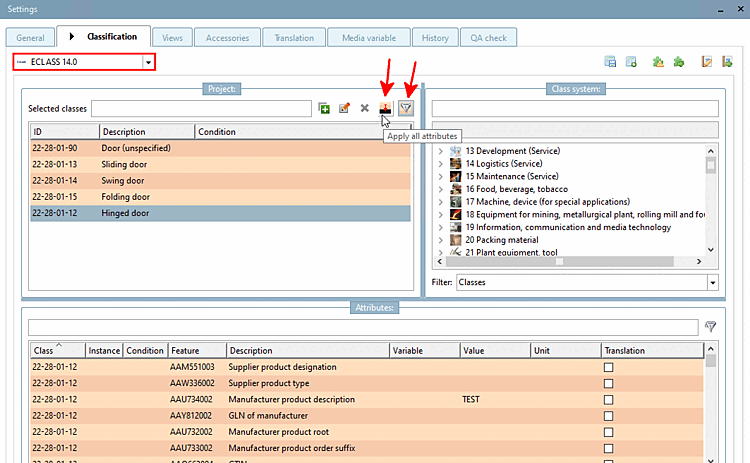

Click on the Apply all attributes button.
-> The project selected in the index tree is now classified according to the "Hinged door" class and the data is written to the project file by clicking on Save.
