3.1.16.2.6.5.  Physical properties of the part

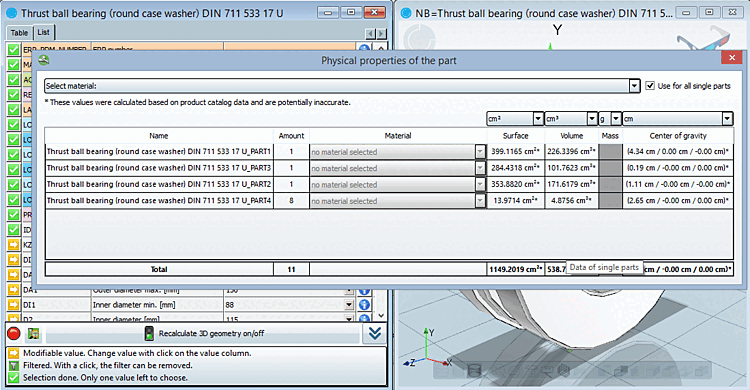

  • You can use this command to view physical data on the respective part and calculate the volume and center of mass.

  • You can set the desired unit [Unit] using the list fields for surface area [Surface], volume [Volume], weight [Weight] and center of mass [Center of gravity].

  • Material:

    • Either use the list field above

      or

    • activate the Use for all individual parts [Use for all single parts] checkbox and assign the material for each component separately in the corresponding list fields of the individual components.

Volume and center of gravity

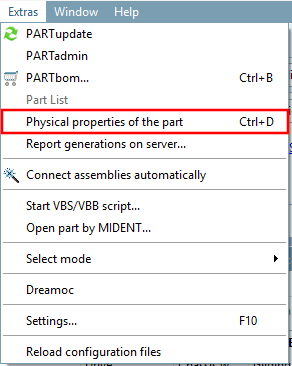

Volume and center of gravity

[Note]Note

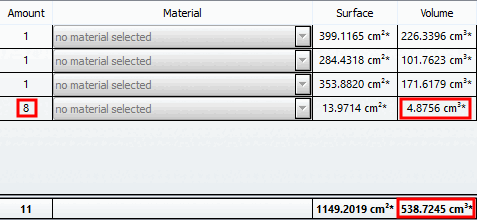

In the row of the single parts there is no multiplication with the amount of parts. The final result regards the amount.

Example: the displayed value of 4.8756 concerns on ONE ball and not on 8 balls. In the final result this value will be multiplied by 8.

Example: the displayed value of 4.8756 concerns on ONE ball and not on 8 balls. In the final result this value will be multiplied by 8.
