Enter the terms and numerical values individually or together:

Pneumatic cylinder 80

If you want to change something, simply click on the relevant term.

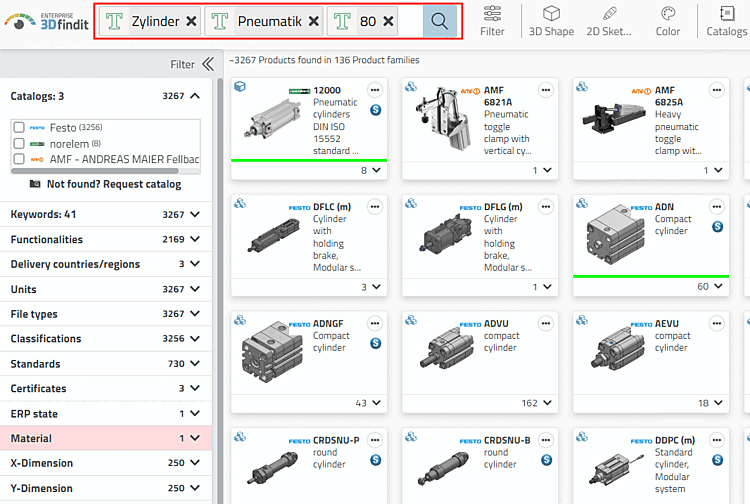

Search result

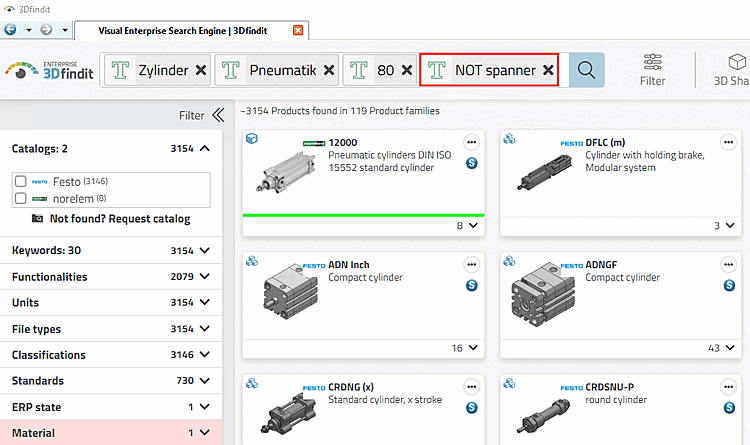

If you want to exclude "disturbing" hits, use "NOT" followed by the search term (NOT must be capitalized).

Search result

Restrict the results using the facet filter if necessary: E.g. under Units with mm or inches [Inch] or under Catalogs to specific manufacturers.

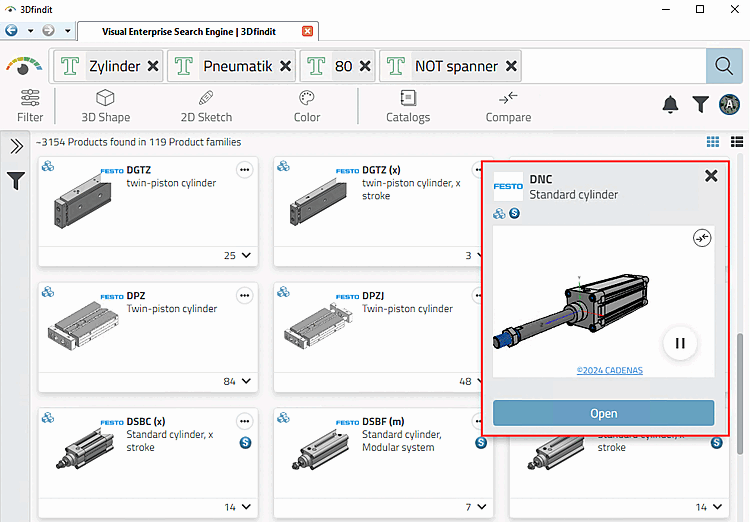

Click on the icon a 3D preview opens.

Click Open to open the part in the part view.

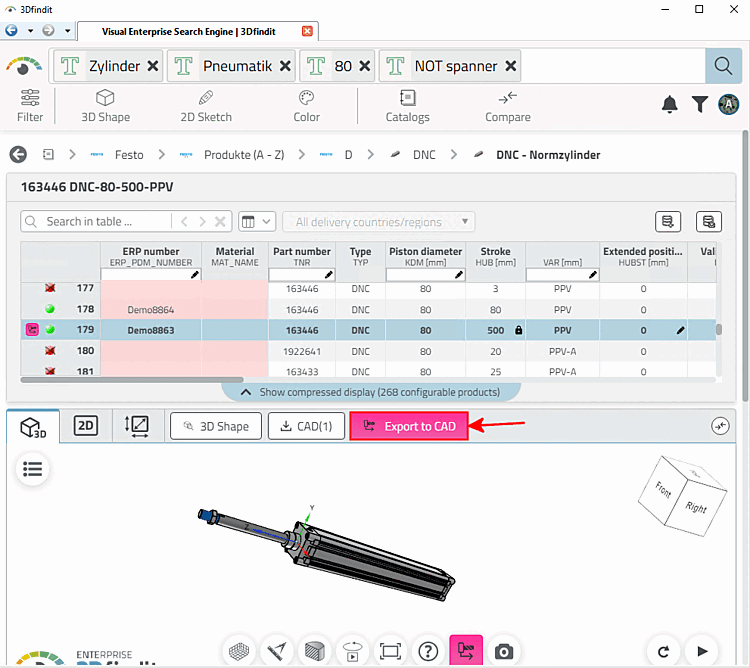

Select the desired table row and click on the Export to CAD button.

Note Whether exporting is generally permitted or whether this is only allowed for parts that have a green status bitmap depends on the company's internal workflow.

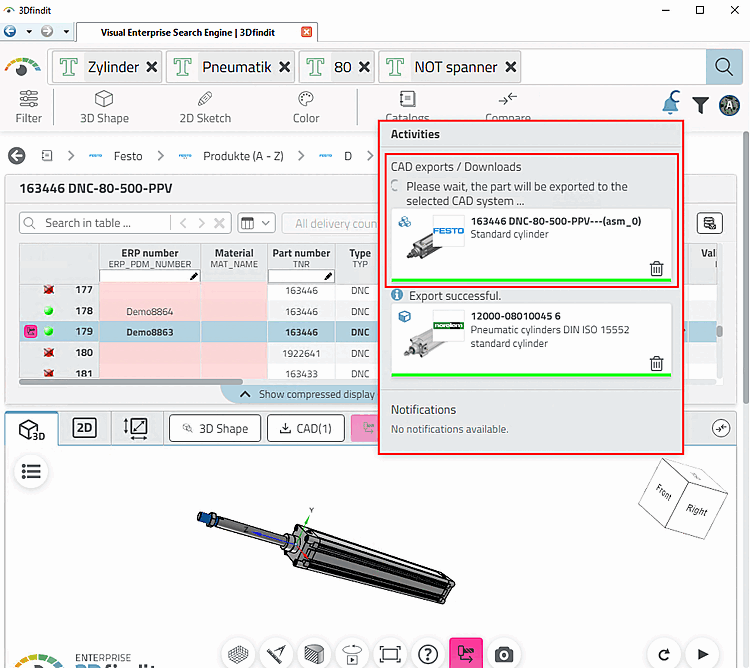

-> The Activities dialog box opens and you are notified that the export is in progress.

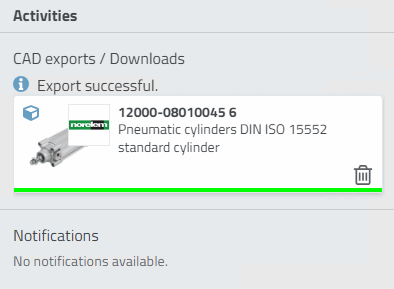

As soon as the export has been successfully completed, the corresponding message appears.
