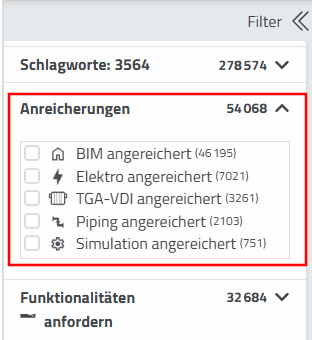

11.3.3.  Enhancements in the Facet Filter

Icon

Meaning

BIM enriched

MCD: Contains MCD information (Mechatronics Concept Designer) [Contains MCD information (Mechatronics Concept Designer)]

ELECTRO: Contains electrical component information [Contains electrical component information]

PIPING: Contains Piping information [Contains piping information]

TGA-VDI Expanded
